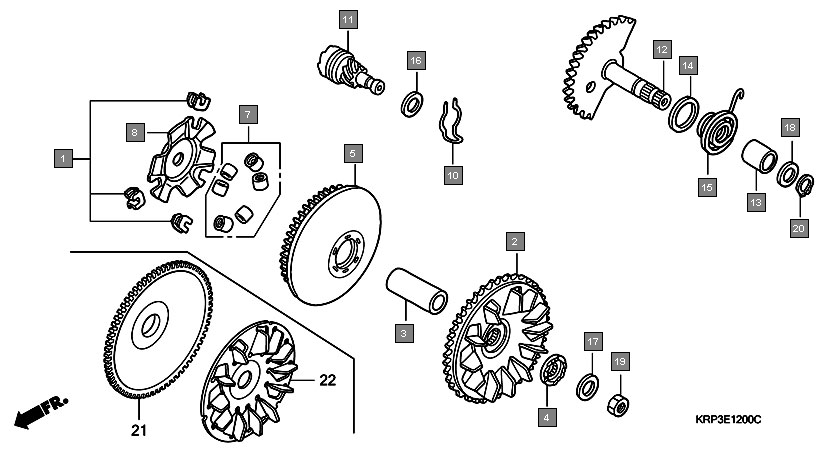

Scooters Dio SCV100F3 Engine Drive face
Ref.No. Part No. Description Oty
1 22011KPL940 PIECE SET, SLIDE 1
2 22102KPL900 FACE COMP., DRIVE(66T) 1
3 22105KPL900 BOSS, DRIVE FACE 1
4 22109KPL900 RATCHET, STARTER 1
5 22110KPL900 FACE COMP., MOVABLE DRIVE 1
6 22123KPL305 ROLLER SET, WEIGHT 1
7 22131KPL900 PLATE, RAMP 1
8 28223GCC000 SPRING, KICK DRIVEN GEAR 1
9 28230KPL900 GEAR COMP., KICK DRIVEN(7T) 1
10 28250KPL900 SPINDLE COMP., KICK STARTER (52T) 1
11 28253KPL900 BUSH, KICK SPINDLE 1
12 28255KPL900 COLLAR, KICK BOSS 1
13 28281GCC000 SPRING, KICK RETURN 1
14 90412329000 WASHER, THRUST, 10MM 1
15 90426KBN900 WASHER, SPECIAL, 12MM 1
16 90451KPL900 WASHER, KICK SPINDLE 1
17 94001122000S NUT, HEX., 12MM 1
18 9451114000 CIRCLIP, EXTERNAL, 14MM 1
