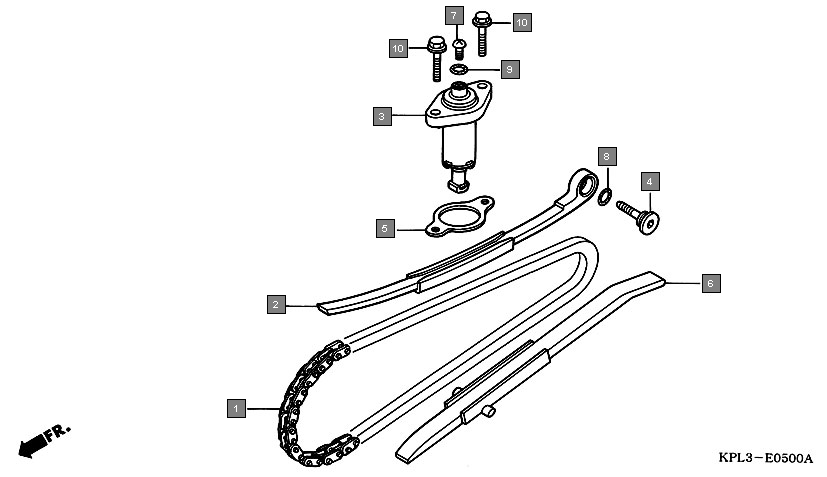

Scooters Dio SCV100F3 Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14401KPL900 CHAIN, CAM(86L) 1
2 14510KPL900 TENSIONER COMP., CAM CHAIN 1
3 14520KPH901 LIFTER ASSY., TENSIONER 1
4 14531GCC000 PIVOT, CAM CHAIN TENSIONER 1
5 14560KCW880 GASKET, TENSIONER LIFTER 1
6 14610KPL900 GUIDE COMP., CAM CHAIN 1
7 90005KPL900 SCREW, PAN, 6X6 1
8 91301HM5630 O-RING, 15.2X1.5 1
9 91306105690 O-RING, 1.5X9.5 1
10 957010602200 BOLT, FLANGE, 6X22 2
