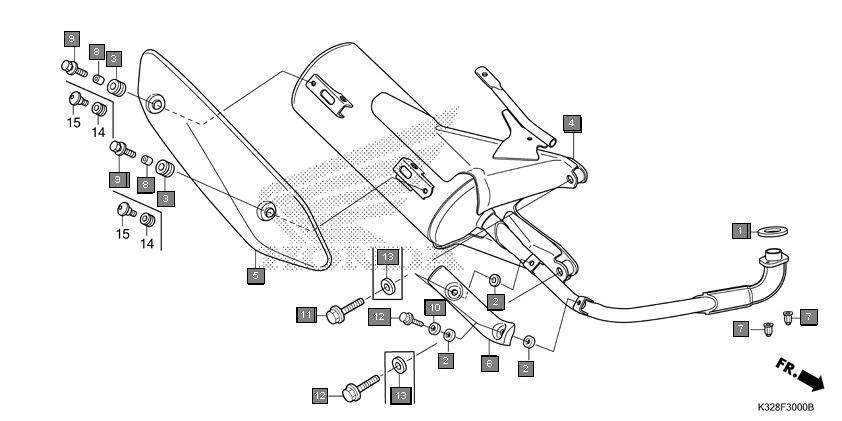

Scooters Activa i SCV110HH Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292KTP900 PACKING, PROTECTOR 4
3 18293KVT900 RUBBER, PROTECTOR PACKING 2
4 18300K32F00 MUFFLER ASSY., EX. 1
5 18300K32700 MUFFLER COMP., EX 1
6 18318K32900 PROTECTOR, MUFFLER 1
7 18319KZKF00 PROTECTOR, EX. PIPE 1
8 90304MJ0920 NUT, CAP, 7MM 2
9 90312KVT900 COLLAR, 9.5X10 2
10 934040602007 BOLT-WASHER, 6X20 2
11 9410106700 WASHER, PLAIN, 6MM 2
12 958011004007 BOLT, FLANGE, 10X40 2
13 960010601007 BOLT, FLANGE, 6X10 2
14 90510KVTG00 WASHER, PLAIN, 10MM 2
