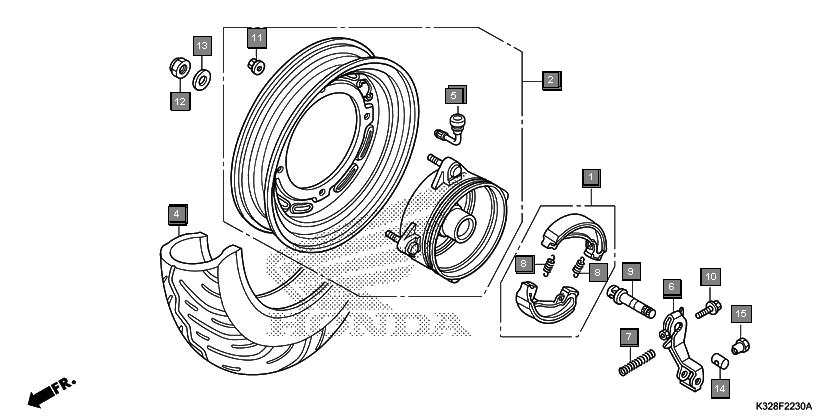

Scooters Activa i SCV110HH Frame Rear wheel
Ref.No. Part No. Description Oty
1 06430KWPD00 SHOE SET, BRAKE(ASK) 1
2 06430KWP900 SHOE SET, BRAKE(JB) 1
3 42650KWPG30 WHEEL SUB ASSY., RR. 1
4 42650KWPE00 WHEEL SUB ASSY., RR. 1
5 42711KWPG01 TIRE(MAXXIS)(90/100-10 53J) 1
6 42711KWPF01 TIRE(CEAT)(90/100-10 53J) 1
7 42711KZK901 TIRE(MRF)(90/100-10M/C 53J) 1
8 42711KZK902 TIRE(TVS)(90/100-10M/C 53J) 1
9 42753K24G01 VALVE, RIM(ACCURA) 1
10 42753KWPE01 VALVE, RIM(TRITON) 1
11 43410KWP900 ARM, RR. BRAKE 1
12 43410KWPG00 ARM, RR. BRAKE 1
13 43472KPL900 SPRING, RR. BRAKE ARM 1
14 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
15 45141KWPD00 CAM, FR. BRAKE (RR.) 1
16 90112KPL900 BOLT, FLANGE, 6X30 1
17 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 4
18 90305KWP901 NUT, HEX., 16MM 1
19 90501KPL900 WASHER, 16MM 1
20 9501532001 JOINT B, BRAKE ARM 1
21 9501542000 NUT B, BRAKE ROD ADJUSTING 1
