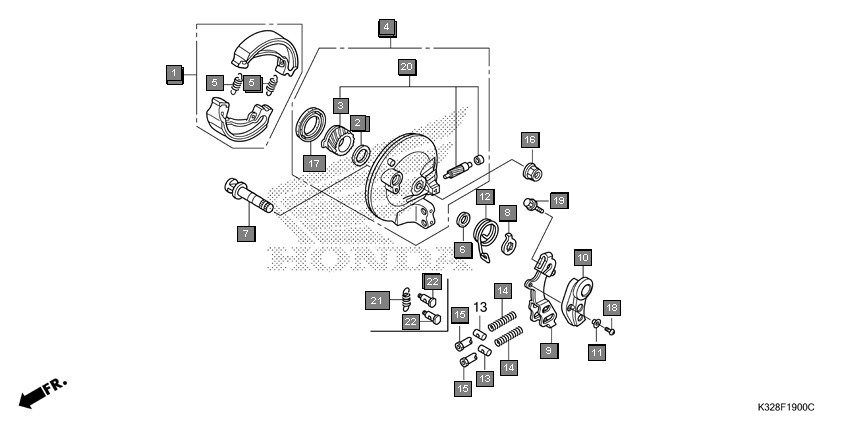

Scooters Activa i SCV110HH Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KWP900 SHOE SET, BRAKE(JB) 1
2 06430KWPD00 SHOE SET, BRAKE(ASK) 1
3 44809KPL900 WASHER, SPEEDOMETER GEAR 1
4 44811KPL900 GEAR, SPEEDOMETER 1
5 45010KWP910 PANEL SUB COMP., FR. BRAKE 1
6 45010KWPG00 PANEL SUB COMP., FR. BRAKE 1
7 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
8 45134250000 DUST SEAL, BRAKE CAM 1
9 45141KWPD00 CAM, FR. BRAKE (RR.) 1
10 45145KPL900 INDICATOR, FR. BRAKE 1
11 45410KWP910 ARM COMP., FR. BRAKE 1
12 45415KWP910 COVER, BRAKE ARM 1
13 45416KWP910 COLLAR, BRAKE ARM COVER 1
14 45435KPL900 SPRING, BRAKE ARM RETURN 1
15 45453KWP911 JOINT, BRAKE ARM 2
16 45456KWP910 SPRING, BRAKE CABLE END 2
17 45459KWP911 NUT, BRAKE ADJUSTING 2
18 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
19 91253KPL900 DUST SEAL, 41X60X7 1
20 93500050101G SCREW, PAN, 5X10 1
21 957010603500 BOLT, FLANGE, 6X35 1
22 957020603500 BOLT, FLANGE, 6X35 1
23 44820KWP900 GEAR SET, SPEEDOMETER 1
24 45134KWPG30 SPRING, BRAKE ARM JOINT 1
25 45453KWPG30 JOINT, BRAKE ARM 2
26 45453KWPG30 JOINT, BRAKE ARM 1
