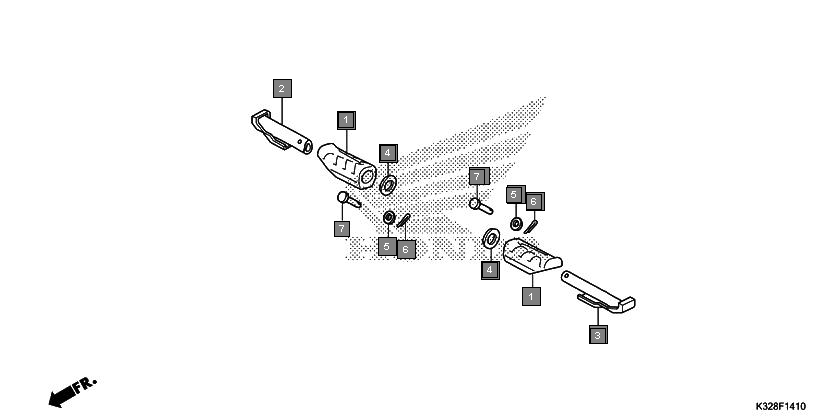

Scooters Activa i SCV110HH Frame Pillion step
Ref.No. Part No. Description Oty
1 50710K32900 RUBBER, PILLION STEP 2
2 50711K32900 BAR, R. PILLION STEP 1
3 50712K32900 BAR, L. PILLION STEP 1
4 50715KE8000 PLATE, PILLION STEP SIDE 2
5 9410106000 WASHER, PLAIN, 6MM 2
6 9420116150 PIN, SPLIT, 1.6X15 2
7 90131KWPF00 PIN, PILLION STEP 2
