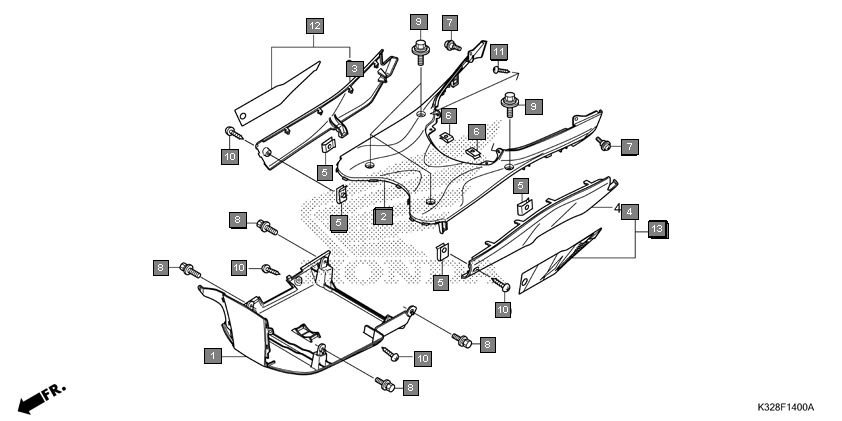

Scooters Activa i SCV110HH Frame Floor step
Ref.No. Part No. Description Oty
1 50621K32900 COVER, UNDER 1
2 64310K32F20ZA STEP, FLOOR*TYPE2* 1
3 64310K32F20ZB STEP, FLOOR*TYPE1* 1
4 64310K32700ZA STEP, FLOOR *TYPE1* 1
5 64320K32900ZH COVER, R. FLOOR SIDE *Y220P*...REARL TRANCE YELLOW 1
6 64320K32900ZJ COVER, R. FLOOR SIDE *R355M*.IMPERIAL RED METALLIC 1
7 64320K32900ZG COVER, R. FLOOR SIDE *NHB63P* PEARL AMAZING WHITE 1
8 64320K32900ZF COVER, R. FLOOR SIDE *NH1* BLACK 1
9 64320K32900ZE COVER, R. FLOOR SIDE *P105M* ORCHID PURPLE METALLIC 1
10 64320K32900ZK COVER, R. FLOOR SIDE *B221C*......CANDY JAZZY BLUE 1
11 64330K32900ZJ COVER, L. FLOOR SIDE *R355M*.IMPERIAL RED METALLIC 1
12 64330K32900ZH COVER, L. FLOOR SIDE *Y220P*...REARL TRANCE YELLOW 1
13 64330K32900ZF COVER, L. FLOOR SIDE *NH1* BLACK 1
14 64330K32900ZK COVER, L. FLOOR SIDE *B221C*......CANDY JAZZY BLUE 1
15 64330K32900ZE COVER,L. FLOOR SIDE *P105M* ORCHID PURPLE METALLIC 1
16 64330K32900ZG COVER, L. FLOOR SIDE *NHB63P* PEARL AMAZING WHITE 1
17 90344KRP900 NUT, CLIP, 5MM 4
18 90344KTE910 NUT, CLIP, 4MM 2
19 91509GE2760 SCREW, PAN, 5X11.5 2
20 934040601607 BOLT-WASHER, 6X16 4
21 934040602507 BOLT-WASHER, 6X25 4
22 9390325380 SCREW, TAPPING, 5X16 4
23 9390334380 SCREW, TAPPING, 4X12 2
24 64100K32700ZC COVER SET, R. FLOOR SIDE(WL) *TYPE3* 1
25 64100K32700ZD COVER SET, R. FLOOR SIDE(WL) *TYPE2* 1
26 64100K32700ZB COVER SET, R. FLOOR SIDE(WL) *TYPE4* 1
27 64100K32700ZE COVER SET, R. FLOOR SIDE(WL) *TYPE1* 1
28 64100K32700ZA COVER SET, R. FLOOR SIDE(WL) *TYPE5* 1
29 64200K32700ZA COVER SET, L. FLOOR SIDE(WL) *TYPE5* 1
30 64200K32700ZE COVER SET, L. FLOOR SIDE(WL) *TYPE1* 1
31 64200K32700ZC COVER SET, L. FLOOR SIDE(WL) *TYPE3* 1
32 64200K32700ZB COVER SET, L. FLOOR SIDE(WL) *TYPE4* 1
33 64200K32700ZD COVER SET, L. FLOOR SIDE(WL) *TYPE2* 1
