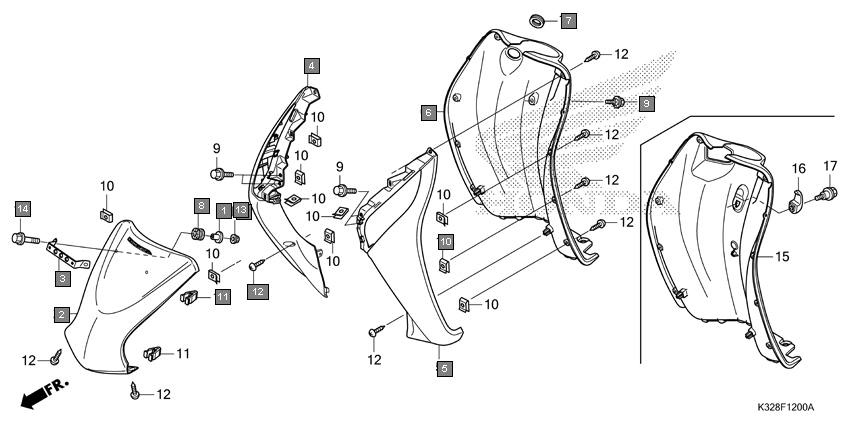

Scooters Activa i SCV110HH Frame Front cover
Ref.No. Part No. Description Oty
1 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
2 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
3 61104428000 COLLAR, FR. FENDER 2
4 64300K32630ZA COVER SET, FR. TOP(WL) *TYPE4* 1
5 64300K32630ZC COVER SET, FR. TOP(WL) *TYPE2* 1
6 64300K32700ZB COVER SET, FR. TOP(WL) *R355M*.IMPERIAL RED METALLIC 1
7 64300K32700ZD COVER SET, FR. TOP(WL) *P105M*. ORCHID PURPLE METALLIC 1
8 64300K32640ZC COVER SET, FR. TOP(WL) *TYPE1* 1
9 64300K32640ZB COVER SET, FR. TOP(WL) *TYPE2* 1
10 64300K32F20ZB COVER SET, FR. TOP(WL)*TYPE1* 1
11 64300K32700ZA COVER SET, FR. TOP(WL) *YR302M*..NEO ORANGE METALLIC 1
12 64300K32640ZA COVER SET, FR. TOP(WL) *TYPE3* 1
13 64300K32700ZC COVER SET, FR. TOP(WL) *RP177M*. LUSH MAGENTA METALLIC 1
14 64300K32700ZE COVER SET, FR. TOP(WL) *NH1*...................BLACK 1
15 64300K32630ZB COVER SET, FR. TOP(WL) *TYPE3* 1
16 64300K32630ZD COVER SET, FR. TOP(WL) *TYPE1* 1
17 64300K32F20ZA COVER SET, FR. TOP(WL)*TYPE2* 1
18 64303K32900 STAY, FR. NUMBER PLATE 1
19 64304K32900ZH COVER, R. FR. *Y220P*...REARL TRANCE YELLOW 1
20 64304K32900ZL COVER, R. FR. *YR302M*..NEO ORANGE METALLIC 1
21 64304K32900ZE COVER, R. FR. *P105M* ORCHID PURPLE METALLIC 1
22 64304K32900ZG COVER, R. FR. *NHB63P* PEARL AMAZING WHITE 1
23 64304K32900ZK COVER, R. FR. *B221C*......CANDY JAZZY BLUE 1
24 64304K32900ZJ COVER, R. FR. *R355M*.IMPERIAL RED METALLIC 1
25 64304K32900ZM COVER, R. FR. *RP177M*. LUSH MAGENTA METALLIC 1
26 64304K32900ZF COVER, R. FR. *NH1* BLACK 1
27 64305K32900ZL COVER, L. FR. *YR302M*..NEO ORANGE METALLIC 1
28 64305K32900ZM COVER, L. FR. *RP177M*. LUSH MAGENTA METALLIC 1
29 64305K32900ZE COVER, L. FR. *P105M* ORCHID PURPLE METALLIC 1
30 64305K32900ZJ COVER, L. FR. *R355M*.IMPERIAL RED METALLIC 1
31 64305K32900ZG COVER, L. FR. *NHB63P* PEARL AMAZING WHITE 1
32 64305K32900ZH COVER, L. FR. *Y220P*...REARL TRANCE YELLOW 1
33 64305K32900ZK COVER, L. FR. *B221C*......CANDY JAZZY BLUE 1
34 64305K32900ZF COVER, L. FR. *NH1* BLACK 1
35 81131K32F20ZA COVER, INNER *TYPE2* 1
36 81131K32F20ZB COVER, INNER *TYPE1* 1
37 81131K32700ZA COVER, INNER *TYPE1* 1
38 81132KZK900 RUBBER, KEY CYLINDER 1
39 84703425000 RUBBER, TAILLIGHT MOUNTING 2
40 90111187000 BOLT, FLANGE, 6MM 5
41 90344KRP900 NUT, CLIP, 5MM 10
42 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 4
43 9390325380 SCREW, TAPPING, 5X16 12
44 9405006080 NUT, FLANGE, 6MM 2
45 957010602500 BOLT, FLANGE, 6X25 2
