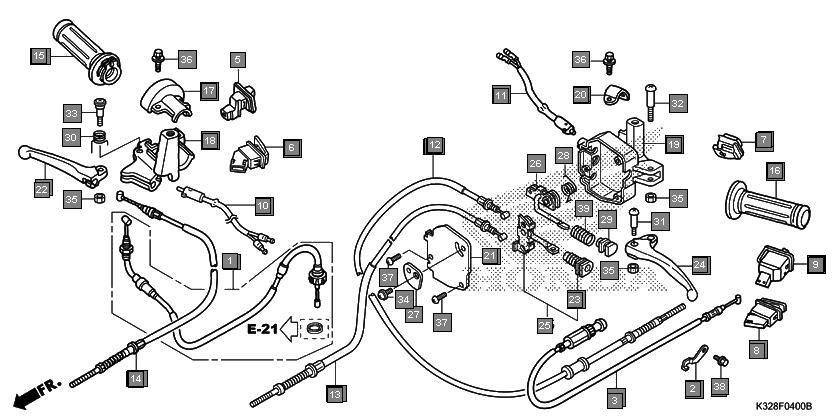

Scooters Activa i SCV110HH Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 06179KZK901 CABLE SET, THROTTLE 1
2 11233KZK900 CLAMP, BRAKE CABLE 1
3 17950KWP900 CABLE COMP., CHOKE 1
4 35150KZK901 SWITCH UNIT, LIGHTING(JAY USHIN) 1
5 35160KWP901 SWITCH UNIT, STARTER 1
6 35170KPL842 SWITCH UNIT, DIMMER(JAY USHIN) 1
7 35170KPL901 SWITCH UNIT, DIMMER(MINDA) 1
8 35180KWP901 SWITCH UNIT, HORN 1
9 35200KVT911 SWITCH UNIT, WINKER(JAY USHIN) 1
10 35200KWP901 SWITCH UNIT, WINKER(MINDA) 1
11 35340KWP900 SWITCH ASSY., FR. STOP 1
12 35340KWPF01 SWITCH ASSY., FR. STOP 1
13 43450K32701 CABLE COMP., RR. BRAKE 1
14 43450K32901 CABLE COMP., RR. BRAKE 1
15 45440K32701 CABLE COMP., L. FR. BRAKE 1
16 45440K32901 CABLE COMP., L. FR. BRAKE 1
17 45450KWP910 CABLE COMP., R. FR. BRAKE 1
18 45450KWPG01 CABLE COMP., R. FR. BRAKE(HI-LEX) 1
19 53146KRB901 GRIP COMP., THROTTLE 1
20 53166KPL901 GRIP, L. HANDLE 1
21 53167KPL900 HOUSING, UPPER THROTTLE 1
22 53168KWP900 HOUSING, UNDER THROTTLE 1
23 53172KWP910 BRACKET, L. BRAKE LEVER 1
24 53173K24G00 BAND, HANDLE BRACKET 1
25 53173KPL900 BAND, HANDLE BRACKET 1
26 53173KWP910 COVER, L. BRAKE LEVER BRACKET 1
27 53175KWPD00 LEVER, R. STEERING HANDLE 1
28 53176GBL870 BOOT, BRAKE LEVER ROD 1
29 53178KWPD00 LEVER, L. STEERING HANDLE 1
30 53180KWP910 EQUALIZER COMP. 1
31 53185KWP910 ARM COMP., RR. BRAKE LOCK 1
32 53186GBL870 COVER, RR. BRAKE LOCK LEVER 1
33 53186KWP910 SPRING, BRAKE LOCK ARM RETURN 1
34 53189K24900 STOPPER, EQUALIZER 1
35 53199KZN910 SPRING, BRAKE LEVER RETURN 1
36 90115KPL900 SCREW, HANDLE LEVER PIVOT 1
37 90115KRP980 SCREW, HANDLE LEVER PIVOT 1
38 90115KZN910 SCREW, HANDLE LEVER PIVOT 1
39 90118KWP910 SCREW, PAN, 5X13 1
40 90304KPL900 NUT, HEX., 5MM 3
41 934010602000 BOLT-WASHER, 6X20 2
42 93500050121H SCREW, PAN, 5X12 2
43 960010601000 BOLT, FLANGE, 6X10 1
44 53188K24900 SPRING, DELAY 1
