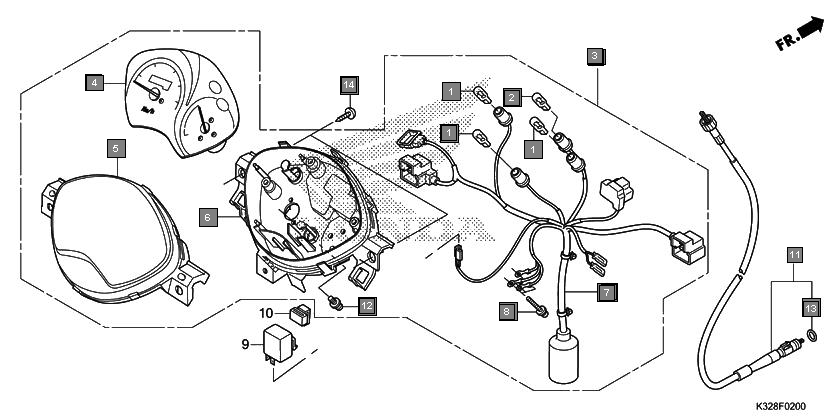

Scooters Activa i SCV110HH Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 3
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 1
3 37200K32701 SPEEDOMETER ASSY.(KPH) 1
4 37200K32F01 METER ASSY., SPEED(KPH) 1
5 37210K32901 METER COMP., SPEED & FUEL 1
6 37210K32701 METER COMP., SPEED & FUEL 1
7 37211K32901 LENS 1
8 37220K32901 CASE COMP. 1
9 37224K32F01 SOCKET COMP. 1
10 37224K32701 SOCKET COMP 1
11 37305KE5008 SCREW-WASHER, 3X22 3
12 44830K32901 CABLE COMP., SPEEDOMETER 1
13 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
14 91352GAZ930 O-RING, 8.5X1.5 1
15 9390325380 SCREW, TAPPING, 5X16 3
