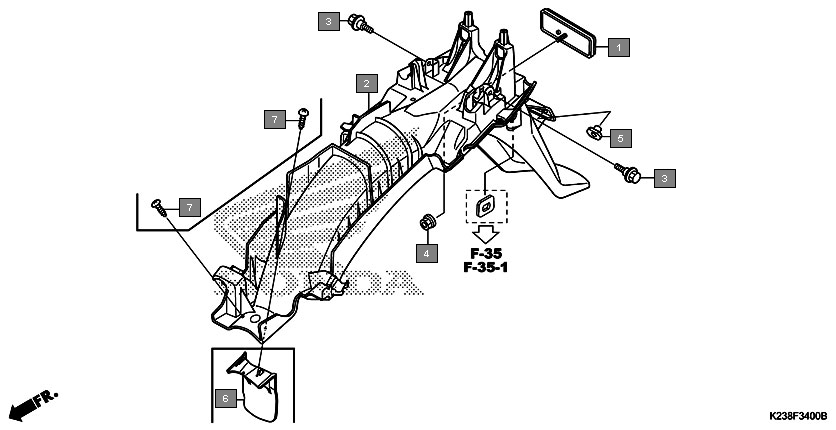

Motorcycles Dream Neo CB110CMG Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 80100K23900 FENDER, RR. 1
3 80100K23A00 FENDER, RR. 1
4 90111162000 BOLT, FLANGE, 6MM 2
5 90301KWN901 NUT, U, 5MM 1
6 90311KTE910 NUT, RR. FENDER 2
7 80110K23A00 GUARD, MUD 1
8 9390325380 SCREW, TAPPING, 5X16 2
