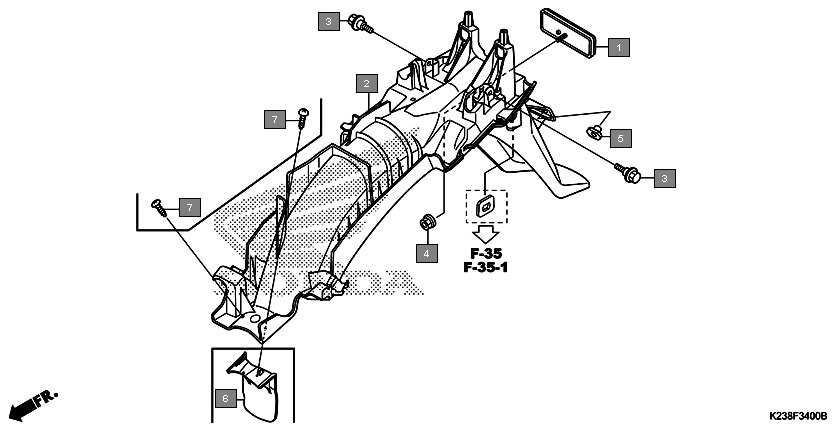

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741KPL902 | REFLECTOR, REFLEX | 1 |
2 | 80100K23A00 | FENDER, RR. | 1 |
3 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
4 | 90301KWN901 | NUT, U, 5MM | 1 |
5 | 90311KTE910 | NUT, RR. FENDER | 2 |
6 | 80110K23A00 | GUARD, MUD | 1 |
7 | 9390325380 | SCREW, TAPPING, 5X16 | 2 |
