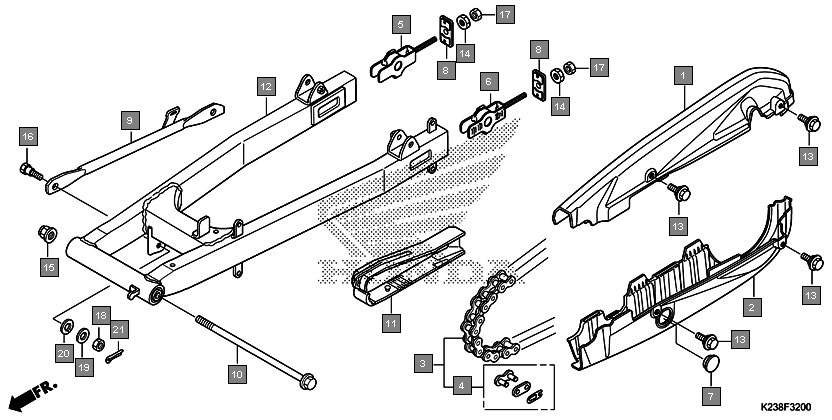

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40510K23900 | CASE, DRIVE CHAIN UPPER | 1 |
| 2 | 40520K23900 | CASE, DRIVE CHAIN LOWER | 1 |
| 3 | 40530K23903 | CHAIN, DRIVE (LGB R420BS-114L) | 1 |
| 4 | 40530K23901 | CHAIN, DRIVE (DID420AD-114RB) | 1 |
| 5 | 40530K23905 | CHAIN, DRIVE (TIDC420-114L) | 1 |
| 6 | 40531KTE912 | JOINT, DRIVE CHAIN(LGB) | 1 |
| 7 | 40531KST941 | JOINT, DRIVE CHAIN(TIDC) | 1 |
| 8 | 40531KWB601 | JOINT, DRIVE CHAIN(DAIDO) | 1 |
| 9 | 40543K14900 | ADJUSTER COMP., R. CHAIN | 1 |
| 10 | 40544K14900 | ADJUSTER COMP., L. CHAIN | 1 |
| 11 | 40545K23900 | CAP, CHAIN CASE PEEP HOLE | 1 |
| 12 | 40546KWF900 | CAP, SWINGARM END | 1 |
| 13 | 43431K23900 | ARM COMP., RR. BRAKE STOPPER | 1 |
| 14 | 52101KZAW00 | BOLT, SWINGARM PIVOT | 1 |
| 15 | 52170K23900 | SLIDER, CHAIN | 1 |
| 16 | 52200K23900 | SWINGARM SUB ASSY., RR. | 1 |
| 17 | 90111162000 | BOLT, FLANGE, 6MM | 4 |
| 18 | 90302KBP900 | NUT, SPECIAL, 6MM | 2 |
| 19 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
| 20 | 9281210000 | BOLT A, STOPPER ARM | 1 |
| 21 | 94001060000S | NUT, HEX., 6MM | 2 |
| 22 | 94001080000S | NUT, HEX., 8MM | 1 |
| 23 | 9410108000 | WASHER, PLAIN, 8MM | 1 |
| 24 | 9411110000 | WASHER, SPRING, 10MM | 1 |
| 25 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
