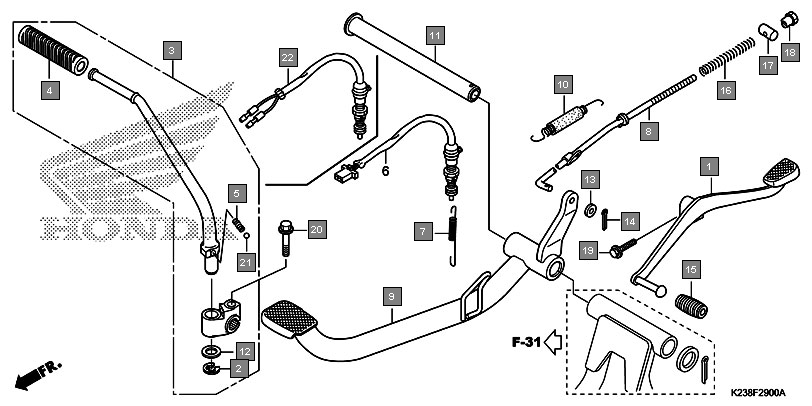

Motorcycles Dream Neo CB110CG Frame Pedal/kick starter arm
Ref.No. Part No. Description Oty
1 24701K14900 PEDAL, GEAR CHANGE 1
2 28293333000 CLIP, KICK STARTER ARM 1
3 28300K14900 ARM ASSY., KICK STARTER 1
4 28311KWS900 RUBBER, KICK STARTER 1
5 28333KK0000 SPRING, KICK STARTER 1
6 35357K14900 SPRING, STOP SWITCH 1
7 43451K23900 ROD COMP., RR. BRAKE 1
8 46500K23900 PEDAL COMP., BRAKE 1
9 46510K21900 SPRING SET, BRAKE PEDAL 1
10 50526K23900 SHAFT, MAIN STAND PIVOT 1
11 90505KRM860 WASHER, 15.5X22 1
12 9410105800 WASHER, PLAIN, 5MM 1
13 9420120120 PIN, SPLIT, 2.0X12 1
14 9501140000 RUBBER, CHANGE PEDAL 1
15 9501473100 SPRING A, BRAKE ROD 1
16 9501532001 JOINT B, BRAKE ARM 1
17 9501542000 NUT B, BRAKE ROD ADJUSTING 1
18 957010602000 BOLT, FLANGE, 6X20 1
19 957010803500 BOLT, FLANGE, 8X35 1
20 9621108000 BALL, STEEL, #8(1/4) 1
21 35350K14961 SWITCH ASSY., RR. STOP(MINDA) 1
