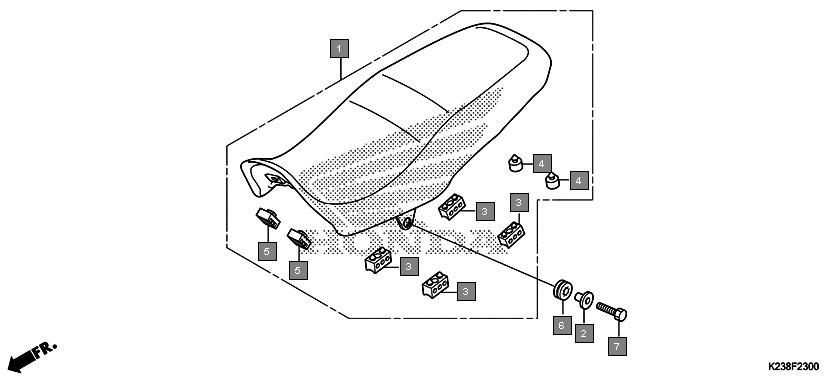

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 77200K23922ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 |
2 | 77201KYY900 | COLLAR, SEAT MOUNTING | 2 |
3 | 77204KYA600 | RUBBER A, SEAT SETTING | 4 |
4 | 77206KPPT00 | RUBBER, SEAT CUSHION | 2 |
5 | 77207KYA600 | RUBBER B, SEAT SETTING | 2 |
6 | 77218KYY900 | RUBBER, SEAT STAY | 2 |
7 | 92101080280A | BOLT, HEX., 8X28 | 2 |
