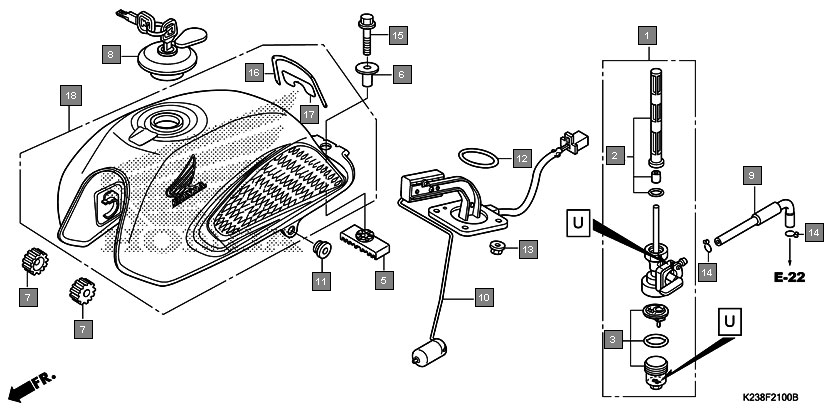

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16950K23900 | COCK ASSY., FUEL (UCAL) | 1 |
2 | 16954KZAW00 | SCREEN SET, FUEL STRAINER (UCAL) | 1 |
3 | 16955K23900 | CUP SET, FUEL STRAINER (UCAL) | 1 |
4 | 17508KVX600 | RUBBER, RR. FUEL TANK MOUNTING | 1 |
5 | 17509K23900 | COLLAR, FUEL TANK MOUNT | 1 |
6 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
7 | 17620KSP911 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
8 | 17681K14900 | TUBE, FUEL | 1 |
9 | 37800K23901 | FUEL UNIT | 1 |
10 | 83551376000 | GROMMET, SIDE COVER | 2 |
11 | 91305443740 | O-RING, 39.5X5 | 1 |
12 | 9405006000 | NUT, FLANGE, 6MM | 4 |
13 | 9500202080 | CLIP, TUBE(B8) | 2 |
14 | 957010803508 | BOLT, FLANGE, 8X35 | 1 |
15 | 17520K23D00ZA | TANK ASSY., FUEL(WL) *TYPE4* | 1 |
16 | 17520K23D00ZB | TANK ASSY., FUEL(WL) *TYPE2* | 1 |
17 | 17520K23D00ZC | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
18 | 17520K23D00ZD | TANK ASSY., FUEL(WL) *TYPE3* | 1 |
