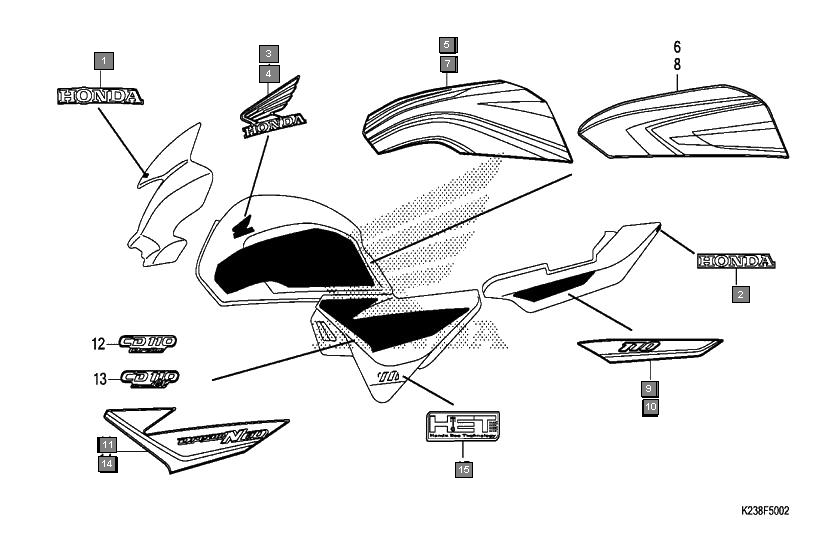

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86101K14900ZC | MARK, HONDA(70MM)*TYPE2* | 1 |
2 | 86102K23A00ZB | MARK, HONDA(70MM)*TYPE1* | 1 |
3 | 86111K23D00 | EMBLEM, R. WING | 1 |
4 | 86121K23D00 | EMBLEM, L. WING | 1 |
5 | 86171K23D00ZA | STRIPE, R. FUEL TANK *TYPE4* | 1 |
6 | 86171K23D00ZB | STRIPE, R. FUEL TANK*TYPE2* | 1 |
7 | 86171K23D00ZC | STRIPE, R. FUEL TANK*TYPE1* | 1 |
8 | 86171K23D00ZD | STRIPE, R. FUEL TANK*TYPE3* | 1 |
9 | 86172K23D00ZA | STRIPE, L. FUEL TANK*TYPE4* | 1 |
10 | 86172K23D00ZB | STRIPE, L. FUEL TANK *TYPE2* | 1 |
11 | 86172K23D00ZC | STRIPE, L. FUEL TANK*TYPE1* | 1 |
12 | 86172K23D00ZD | STRIPE, L. FUEL TANK *TYPE3* | 1 |
13 | 86771K23D00ZA | STRIPE, R. RR. COWL *TYPE4* | 1 |
14 | 86771K23D00ZB | STRIPE, R. RR. COWL *TYPE2* | 1 |
15 | 86771K23D00ZC | STRIPE, R. RR. COWL *TYPE1* | 1 |
16 | 86771K23D00ZD | STRIPE, R. RR. COWL *TYPE3* | 1 |
17 | 86772K23D00ZA | STRIPE, L. RR. COWL *TYPE4* | 1 |
18 | 86772K23D00ZB | STRIPE, L. RR. COWL *TYPE2* | 1 |
19 | 86772K23D00ZC | STRIPE, L. RR. COWL *TYPE1* | 1 |
20 | 86772K23D00ZD | STRIPE, L. RR. COWL *TYPE3* | 1 |
21 | 86831K23D00ZA | STRIPE, R. SIDE COVER *TYPE4* | 1 |
22 | 86831K23D00ZB | STRIPE, R. SIDE COVER *TYPE2* | 1 |
23 | 86831K23D00ZC | STRIPE, R. SIDE COVER *TYPE1* | 1 |
24 | 86832K23D00ZA | STRIPE, L. SIDE COVER *TYPE4* | 1 |
25 | 86831K23D00ZD | STRIPE, R. SIDE COVER *TYPE3* | 1 |
26 | 86832K23D00ZB | STRIPE, L. SIDE COVER *TYPE2* | 1 |
27 | 86832K23D00ZC | STRIPE, L. SIDE COVER *TYPE1* | 1 |
28 | 86832K23D00ZD | STRIPE, L. SIDE COVER *TYPE3* | 1 |
29 | 86833KWPD00ZA | MARK, HET *TYPE1* | 1 |
