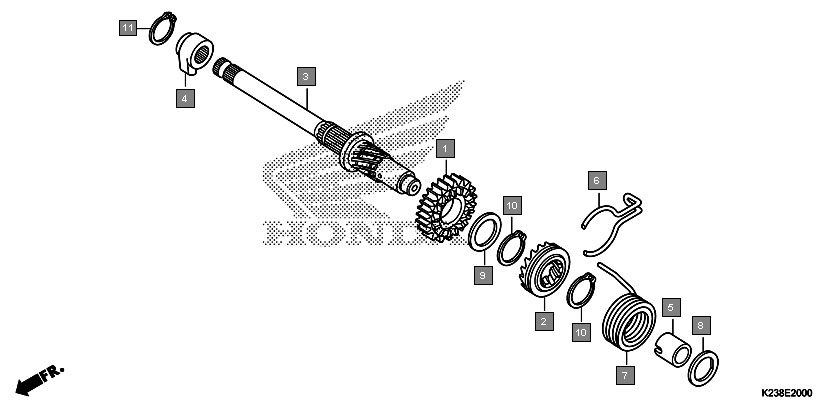

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28211K23900 | PINION, KICK STARTER(22T) | 1 |
2 | 28221KWS900 | RATCHET, STARTER DRIVE | 1 |
3 | 28251KWS900 | SPINDLE, KICK STARTER | 1 |
4 | 28262KWS900 | RETAINER, KICK SPINDLE | 1 |
5 | 28265KWB600 | COLLAR, KICK SPRING | 1 |
6 | 28271KWB600 | SPRING, FRICTION STARTER GEAR | 1 |
7 | 28281KWB600 | SPRING, KICK RETURN | 1 |
8 | 90451KGH900 | WASHER, SPECIAL, 14MM | 1 |
9 | 90454KPH900 | WASHER, 25X20.2X1 | 1 |
10 | 90605200000 | SET RING, 20MM | 1 |
11 | 90601K14960 | CIRCLIP, EXTERNAL, 18MM | 1 |
