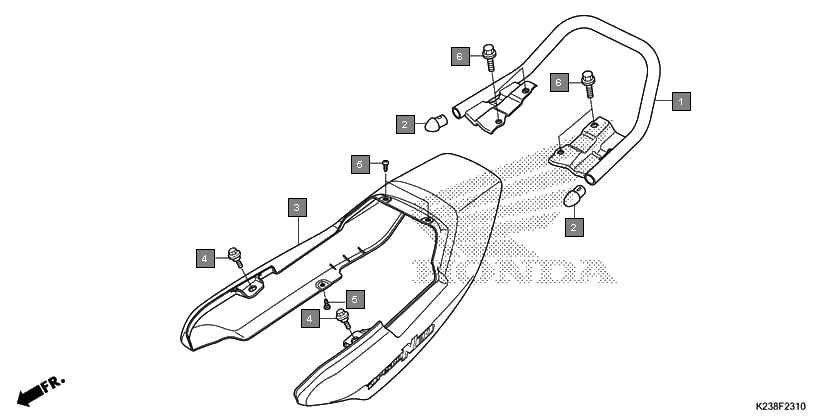

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50400K23900 | GRIP COMP., RR. | 1 |
2 | 50415KTE910 | CAP, RR. GRIP END | 2 |
3 | 77220K63D00ZA | COWL SET, RR.(WL) *TYPE1* | 1 |
4 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
5 | 9390335280 | SCREW, TAPPING, 5X12 | 4 |
6 | 957010801208 | BOLT, FLANGE, 8X12 | 4 |
