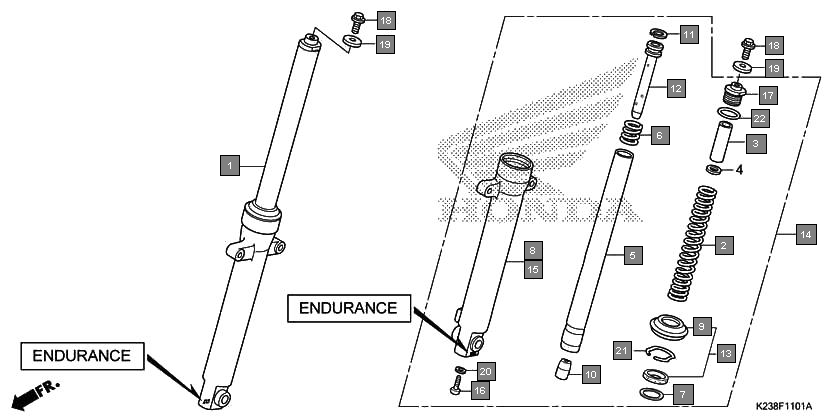

Motorcycles CD 110 Dream CB110C2MG Frame Front fork(endurance)
Ref.No. Part No. Description Oty
1 51400K63D11 FORK ASSY., R. FR.(ENDURANCE) 1
2 51401K23902 SPRING, FR. FORK(ENDURANCE) 2
3 51403K63D11 COLLAR, SPRING 1
4 51410K23902 PIPE COMP., FR. FORK (ENDURANCE) 2
5 51412K23902 SPRING, REBOUND 2
6 51413K63D11 RING, BACK UP 1
7 51420K23902 CASE, R. FR. BOTTOM(ENDURANCE) 1
8 51425K23902 DUST SEAL(ENDURANCE) 2
9 51432K23902 PIECE, OIL LOCK 2
10 51437K23902 RING, PISTON 2
11 51440K23902 PIPE, SEAT 2
12 51490K23902 SEAL SET, FR. FORK 2
13 51500K63D11 FORK ASSY., L. FR.(ENDURANCE). 1
14 51520K23902 CASE, L. FR. BOTTOM(ENDURANCE) 1
15 90116K23902 BOLT, SOCKET, 8MM 2
16 90123K23902 BOLT A, FR. FORK 2
17 90123KRM860 BOLT, FR. FORK 2
18 90521KSP900 WASHER, 10.3MM 2
19 90544K23902 WASHER, SPECIAL, 8MM 2
20 90651K23902 RING, OIL SEAL STOP 2
21 91351K23902 O-RING 2
