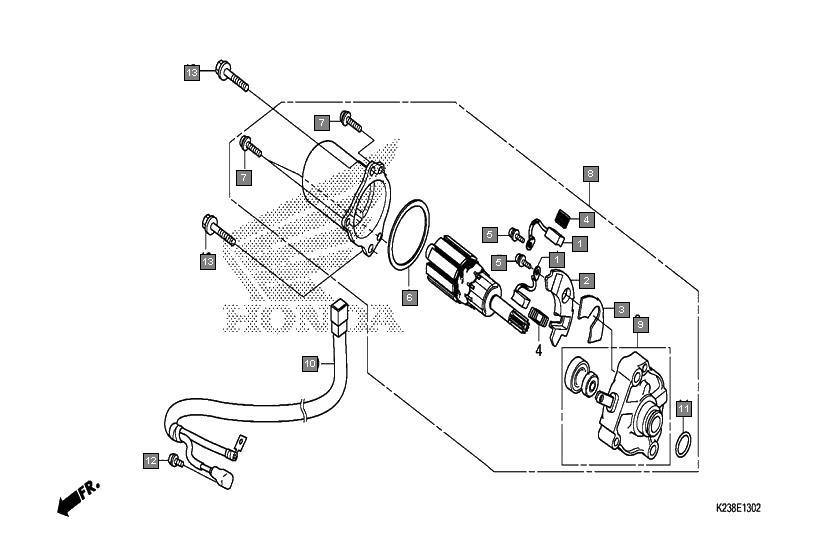

Motorcycles CD 110 Dream CB110C2MG Engine Starter motor(mitsuba)(2)
Ref.No. Part No. Description Oty
1 31201K55601 BRUSH, CARBON 2
2 31202K55601 BRUSH HOLDER 1
3 31203K55601 INSULATOR 1
4 31204K55601 SPRING, BRUSH 2
5 31205K55601 SCREW, 4X6 2
6 31206K55601 PACKING(MITSUBA) 1
7 31207K55601 SCREW-WASHER, 5X12 3
8 31210K55601 MOTOR UNIT, STARTER(MITSUBA) 1
9 31214K55601 BRACKET COMP., FR. 1
10 32105K55601 SUB CORD, STARTER MOTOR 1
11 91309K55601 O-RING 1
12 938920400808 SCREW-WASHER, 4X8 1
13 960010603200 BOLT, FLANGE, 6X32 2
