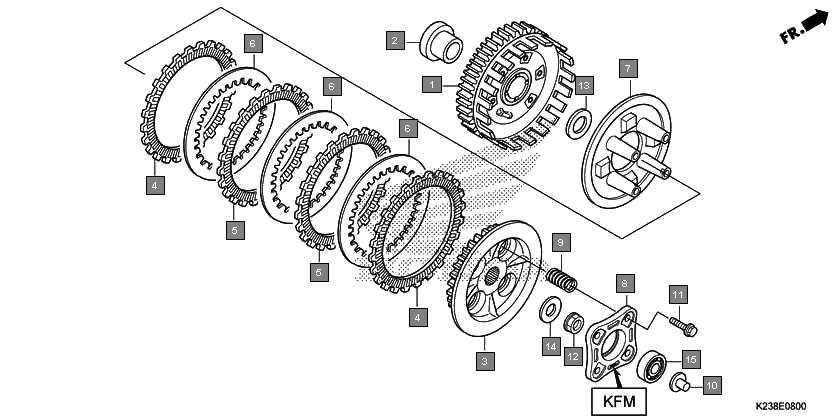

Motorcycles CD 110 Dream CB110C2MG Engine Clutch(f.c.c.)
Ref.No. Part No. Description Oty
1 22115KWS900 GUIDE, CLUTCH OUTER 1
2 22120KWS901 CENTER, CLUTCH 1
3 22201KWS901 DISK, CLUTCH FRICTION 2
4 22204KWS901 DISK B, CLUTCH FRICTION 2
5 22321KWB601 PLATE, CLUTCH 3
6 22355KWS901 PLATE, CLUTCH PRESSURE 1
7 22361KFM900 PLATE, CLUTCH LIFTER 1
8 22401KWS901 SPRING, CLUTCH 4
9 22847KCC900 ROD, CLUTCH LIFTER 1
10 90050KFL850 BOLT, SPECIAL FLANGE, 6X25 4
11 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
12 90403KPH900 WASHER, THRUST, 17MM 1
13 90432KPTA00 WASHER, 14.2X26X3 1
14 961006200000 BEARING, RADIAL BALL, 6200 1
15 22100K63D11 OUTER COMP., CLUTCH(F.C.C.) 1
