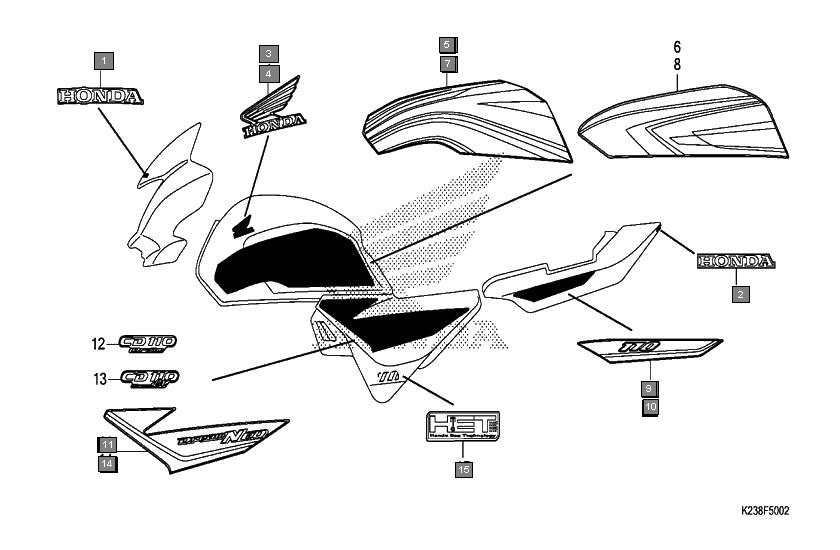

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86101K23900ZE | MARK, HONDA(70MM)*TYPE1* | 1 |
2 | 86102K23900ZE | MARK, HONDA(70MM)*TYPE1* | 1 |
3 | 86201K23900ZE | MARK, R. WING(100MM)*TYPE1* | 1 |
4 | 86202K23900ZE | MARK, L. WING(100MM)*TYPE1* | 1 |
5 | 86171K63D10ZB | STRIPE, R. FUEL TANK *TYPE3* BlacknGray | 1 |
6 | 86171K63D10ZC | STRIPE, R. FUEL TANK *TYPE2* BlacknBlue | 1 |
7 | 86171K63D10ZD | STRIPE, R. FUEL TANK *TYPE1* BlacknRed | 1 |
8 | 86172K63D10ZB | STRIPE, L. FUEL TANK *TYPE3* BlacknGray | 1 |
9 | 86172K63D10ZC | STRIPE, L. FUEL TANK *TYPE2* BlacknBlue | 1 |
10 | 86172K63D10ZD | STRIPE, L. FUEL TANK *TYPE1* BlacknRed | 1 |
11 | 86831K63D00ZA | MARK(CD110)(DREAM)*TYPE1* | 2 |
12 | 86833KWPD00ZA | MARK, HET *TYPE1* | 1 |
