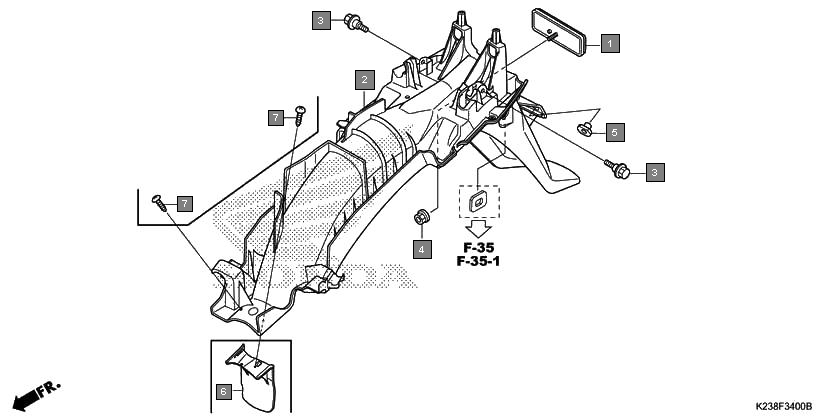

Motorcycles CD 110 Dream CB110C2G Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 80100K23A00 FENDER, RR. 1
3 90111162000 BOLT, FLANGE, 6MM 2
4 90301KWN901 NUT, U, 5MM 1
5 90311KTE910 NUT, RR. FENDER 2
6 80110K23A00 GUARD, MUD 1
7 9390325380 SCREW, TAPPING, 5X16 2
