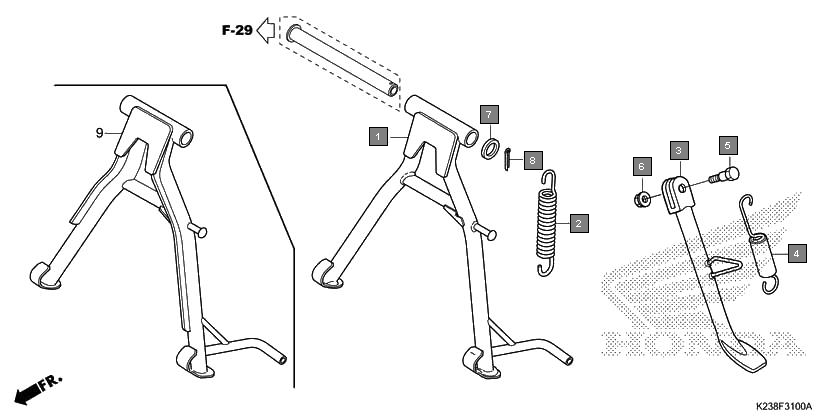

Motorcycles CD 110 Dream CB110C2G Frame Stand
Ref.No. Part No. Description Oty
1 50500K23900 STAND COMP., MAIN 1
2 50520K21900 SPRING, MAIN STAND 1
3 50530K14900 BAR COMP., SIDE STAND 1
4 50532KZAW00 SPRING ASSY., SIDE STAND 1
5 90107GN1010 SCREW, SIDE STAND PIVOT 1
6 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
7 90521028000 WASHER, 17X22 1
8 9420130300 PIN, SPLIT, 3.0X30 1
