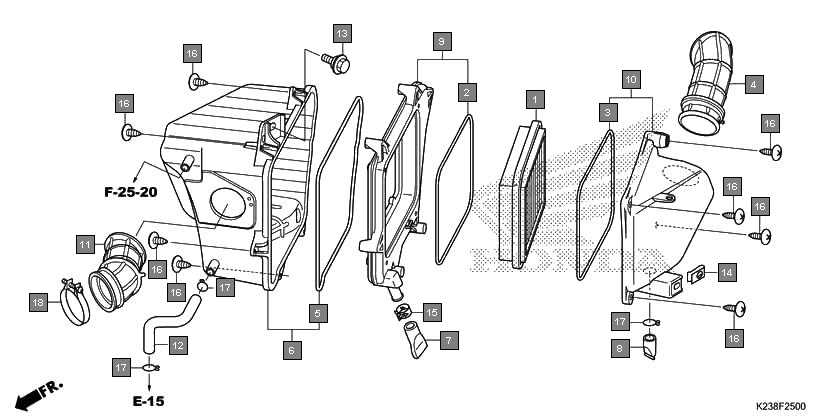

Motorcycles CD 110 Dream CB110C2G Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211K14900 ELEMENT COMP., AIR CLEANER 1
2 17214KVX600 SEAL, AIR CLEANER 1
3 17219K14900 DUCT, AIR CLEANER 1
4 17219KTC900 SEAL, AIR CLEANER CASE 1
5 17225K23900 CASE SUB ASSY., AIR CLEANER 1
6 17227KTE910 TUBE, VINYL, 11X15X40 1
7 17234KCC941 TUBE, AIR CLEANER DRAIN 1
8 17235K14900 HOLDER SUB ASSY., AIR CLEANER 1
9 17245K23900 COVER SUB ASSY., AIR CLEANER 1
10 17253K14900 TUBE, AIR CLEANER CONNECTING 1
11 17371KZAW00 TUBE, BREATHER 1
12 90111162000 BOLT, FLANGE, 6MM 1
13 90311KSH900 NUT, CLIP, 6MM 1
14 91406KFN850 CLAMP, TUBE(D14.5) 1
15 9390325480 SCREW, TAPPING, 5X20 10
16 9500202130 CLIP, TUBE(B12.5) 3
17 9501846320 BAND, AIR CLEANER CONNECTINGTUBE(46) 1
