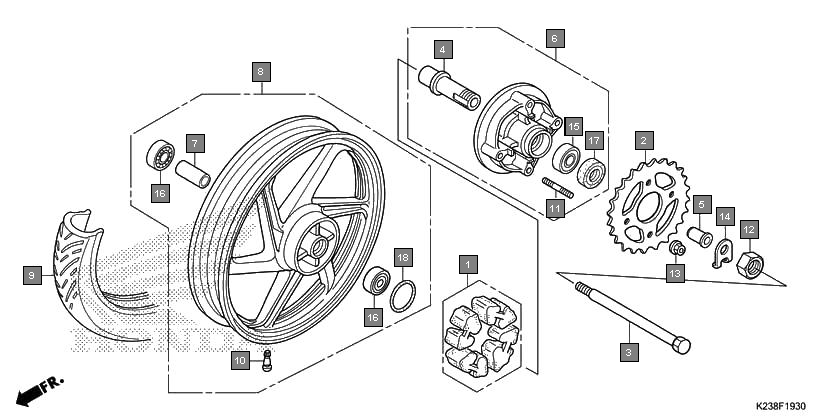

Motorcycles CD 110 Dream CB110C2G Frame Rear wheel(cast)
Ref.No. Part No. Description Oty
1 06410KTE910 DAMPER SET, WHEEL 1
2 41201K14900 SPROCKET, FINAL DRIVEN(41T) 1
3 42301KZAW00 AXLE, RR. WHEEL 1
4 42303K14900 SLEEVE, RR. WHEEL 1
5 42304K14900 COLLAR, RR. AXLE SLEEVE 1
6 42615K14900 FLANGE SUB ASSY., FINAL DRIVEN 1
7 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
8 42650K63D10ZA WHEEL SUB ASSY., RR. *NH35M*.CLOUD SILVER METALLIC 1
9 42711KTE601 TIRE, RR.(MRF) (80/100-18 M/C 54P) 1
10 42711KTE602 TIRE, RR.(TVS) (80/100-18 M/C 54P) 1
11 42753KWF901 VALVE, RIM(TRITON) 1
12 90128KTE910 BOLT, STUD, 8X20 4
13 90307KTE910 NUT, RR. AXLE SLEEVE(17MM) 1
14 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
15 90559KTR900 WASHER, RR. AXLE 1
16 91081KYJ711 BEARING, RADIAL BALL, 6203UU (NEI) 1
17 91051K23902 BEARING, RADIAL BALL, 6203UU(SKF) 1
18 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
19 91052K23905 BEARING, RADIAL BALL, 6301U (JTEKT) 2
20 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
21 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
22 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
23 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
24 91304704000 O-RING, 42MM 1
