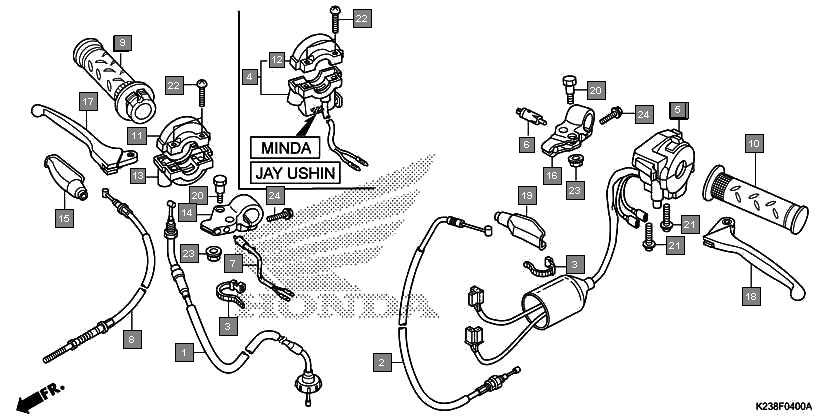

Motorcycles CD 110 Dream CB110C2G Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 35150K14921 SWITCH ASSY., STARTER(MINDA) 1
2 35200K63D21 SWITCH ASSY., WINKER (JAY USHIN) 1
3 35200K63D11 SWITCH ASSY., WINKER (JAY USHIN) 1
4 35330KWS901 SWITCH ASSY., CLUTCH 1
5 53140K63D10 GRIP COMP., THROTTLE 1
6 53167KZAW00 HOUSING, UPPER THROTTLE 1
7 53168KWA841 HOUSING, UPPER THROTTLE(MINDA) 1
8 53168KZAW00 HOUSING, UNDER THROTTLE 1
9 53172K14910 BRACKET, L. HANDLE LEVER 1
10 06179K23930 CABLE SET, THROTTLE 1
11 06179K23940 CABLE SET, THROTTLE 1
12 22870K14901 CABLE COMP., CLUTCH 1
13 32161KSP920 BAND B1, WIRE 2
14 35200K63D01 SWITCH ASSY., WINKER 1
15 35340KZAW01 SWITCH ASSY., FR. STOP 1
16 45450K14901 CABLE COMP., FR. BRAKE(HI-LEX) 1
17 53140K14900 GRIP COMP., THROTTLE 1
18 53166KSP900 GRIP, L. HANDLE 1
19 53171K14900 BRACKET, R. HANDLE LEVER 1
20 53171KCC900 COVER, R. HANDLE LEVER 1
21 53172K14900 BRACKET, L. HANDLE LEVER 1
22 53175KYY900 LEVER COMP., R. HANDLE 1
23 53178KYY900 LEVER COMP., L. HANDLE 1
24 53179KTC900 COVER, L. HANDLE LEVER 1
25 90113KYY900 BOLT, HANDLE LEVER PIVOT 2
26 93500050200G SCREW, PAN, 5X20 2
27 93500050220G SCREW, PAN, 5X22 2
28 9405006000 NUT, FLANGE, 6MM 2
29 957010602200 BOLT, FLANGE, 6X22 2
