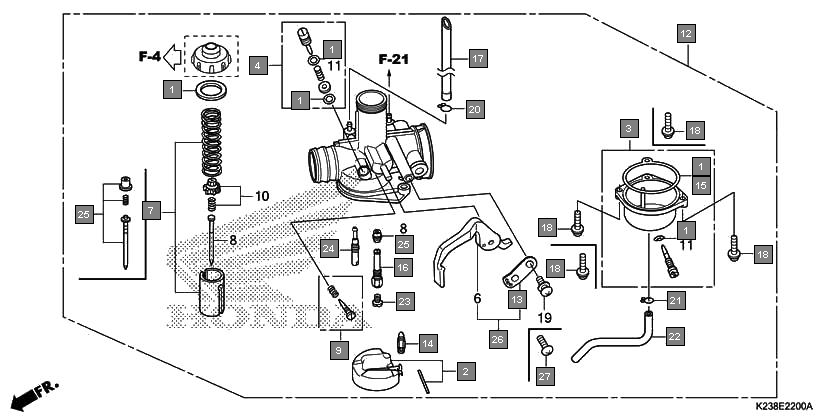

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16010K23931 | GASKET SET | 1 |
2 | 16013K23931 | FLOAT SET | 1 |
3 | 16015K23931 | CHAMBER SET, FLOAT | 1 |
4 | 16016K23931 | SCREW SET A | 1 |
5 | 16022K23931 | VALVE SET, THROTTLE | 1 |
6 | 16028K23931 | SCREW SET B | 1 |
7 | 16100K23931 | CARBURETOR ASSY.(VM17A A) | 1 |
8 | 16975K23931 | PLATE, STAY | 1 |
9 | 16155KVRC02 | VALVE COMP., FLOAT | 1 |
10 | 16163K23931 | GASKET, FLOAT CHAMBER | 1 |
11 | 16165K23931 | HOLDER, NEEDLE JET | 1 |
12 | 16198K23931 | TUBE, AIR VENT | 1 |
13 | 938920401608 | SCREW-WASHER, 4X16 | 4 |
14 | 9500202100 | CLIP, TUBE(B10) | 1 |
15 | 9500202659 | CLIP, TUBE(B6.5) | 1 |
16 | 950053540050 | TUBE, 3.5X400(95005-35001-50M) | 1 |
17 | 99131K230950 | JET, MAIN, #95 | 1 |
18 | 16180K23931 | JET, SLOW, #12.5 | 1 |
19 | 16012K23931 | NEEDLE SET, JET | 1 |
20 | 16025K23931 | LEVER SET, CHOKE | 1 |
21 | 93500050101H | SCREW, PAN, 5X10 | 1 |
