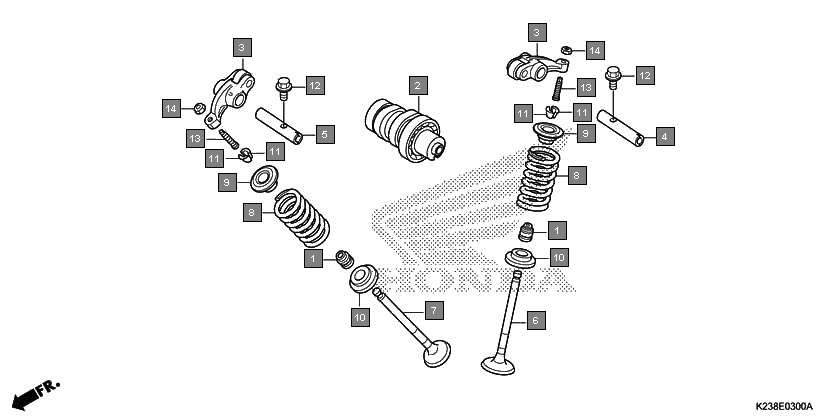

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209GB4682 | SEAL, VALVE STEM(ARAI) | 2 |
2 | 14100K23900 | CAMSHAFT COMP. | 1 |
3 | 14430KWP900 | ARM COMP., IN. VALVE ROCKER | 2 |
4 | 14451KYY900 | SHAFT, IN. ROCKER ARM | 1 |
5 | 14452KYY900 | SHAFT, EX. ROCKER ARM | 1 |
6 | 14711KWB600 | VALVE, IN. | 1 |
7 | 14721KVY900 | VALVE, EX. | 1 |
8 | 14751KWB600 | SPRING, VALVE(NIPPON HATSUJO) | 2 |
9 | 14771GB4680 | RETAINER, VALVE SPRING | 2 |
10 | 14775KWP900 | SEAT, VALVE SPRING | 2 |
11 | 14781MA6000 | COTTER, VALVE | 4 |
12 | 90002KRM840 | BOLT, FLANGE, 5X14 | 2 |
13 | 90012KWW740 | SCREW, TAPPET ADJUSTING | 2 |
14 | 90206KPL900 | NUT, TAPPET ADJUSTING | 2 |
