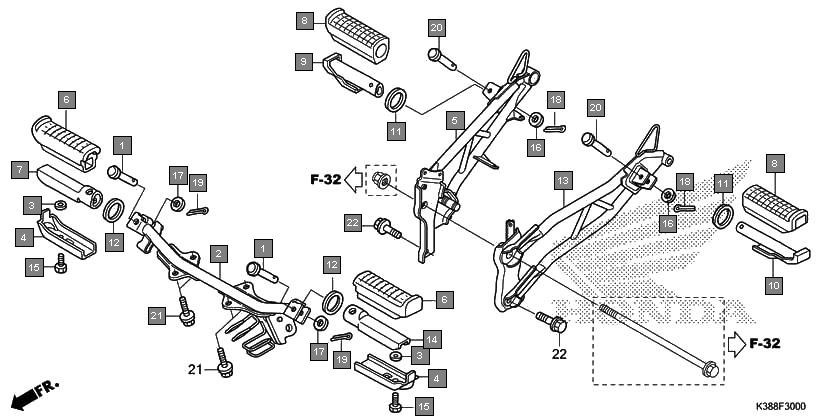

Motorcycles CB Unicorn 160 CBF160G Frame Step
Ref.No. Part No. Description Oty
1 50602KSP900 PIN, MAIN STEP BAR JOINT 2
2 50610K38900 BAR COMP., STEP 1
3 50618KE8000 COLLAR, 6.5X11X3 2
4 50619KSP900 PLATE, STEP LOWER 2
5 50640K38910 HOLDER, R. STEP 1
6 50640K38900 HOLDER, R. STEP 1
7 50661KFN880 RUBBER, MAIN STEP 2
8 50701KSP900 BAR, R. MAIN STEP 1
9 50710KET600 RUBBER, PILLION STEP 2
10 50711KET600 BAR, R. PILLION STEP 1
11 50712KET600 BAR, L. PILLION STEP 1
12 50715KE8000 PLATE, PILLION STEP SIDE 2
13 50715KSP910 PLATE, PILLION STEP SIDE 2
14 50740K38900 HOLDER, L. STEP 1
15 50801KSP900 BAR, L. MAIN STEP 1
16 92101060120G BOLT, HEX., 6X12 2
17 9410106000 WASHER, PLAIN, 6MM 2
18 9410208000 WASHER, PLAIN, 8MM 2
19 9420116150 PIN, SPLIT, 1.6X15 2
20 9420120150 PIN, SPLIT, 2.0X15 2
21 9501581000 PIN A, PILLION STEP 2
22 957010802000 BOLT, FLANGE, 8X20 4
23 957011002500 BOLT, FLANGE, 10X25 2
