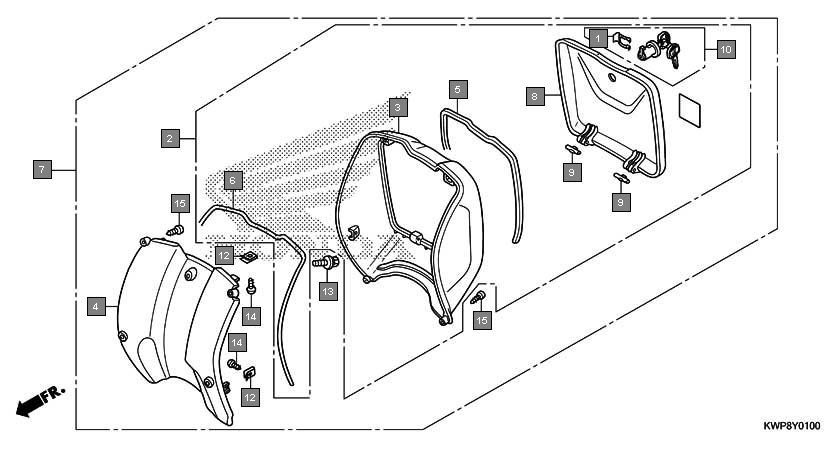

Scooters Activa SCV110G Frame Inner box
Ref.No. Part No. Description Oty
1 75581KPL900 SPRING, LOCK KEY SETTING 1
2 81130KWP900 BOX ASSY., INNER 1
3 81134KWP900 OUTER, INNER BOX 1
4 81135KWP900 INNER, INNER BOX 1
5 81137KWP900 SEAL, INNER BOX 1
6 81138KWP900 SEAL, OUTER INNER 1
7 81140KWP900 BOX SET, INNER 1
8 81141KWP900 LID, INNER BOX 1
9 81143GC8000 PIN, INNER BOX LID 2
10 81145KPL900 KEY SET, INNER BOX 1
11 90344KRP900 NUT, CLIP, 5MM 4
12 934040602008 BOLT-WASHER, 6X20 1
13 9390325180 SCREW, TAPPING, 5X10 4
14 9390325580 SCREW, TAPPING, 5X25 6
