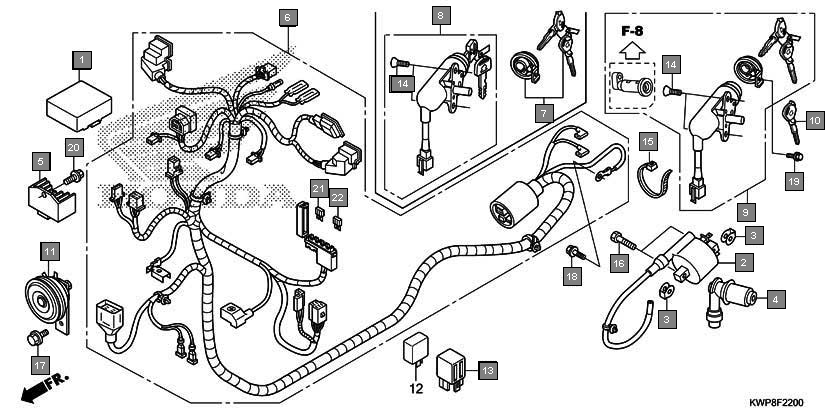

Scooters Activa SCV110G Frame Wire harness
Ref.No. Part No. Description Oty
1 30410KWPE01 SPARK UNIT COMP.(DENSO) 1
2 30500KWPD01 COIL ASSY., IGNITION(WINGS) 1
3 30410KWPG01 SPARK UNIT COMP.(SHINDENGEN) 1
4 30520GFM900 SPACER, IGNITION COIL 2
5 30700KWP901 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
6 31600KWPE02 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
7 31600KWPG01 RECTIFIER COMP., REGULAT(SHINDENGEN) 1
8 35011KWP910 SHUTTER SET, KEY(JAY USHIN)(KEY NO. PXXX/QXXX) 1
9 35011KWPD20 SHUTTER SET, KEY(MINDA)(KEY NO. RXXX/SXXX) 1
10 35012KWPD00 SWITCH ASSY. SET, COMBINATION& LOCK(JAY USHIN) 1
11 32100KWPG00 HARNESS, WIRE(MINDA) 1
12 35012KWPD20 SWITCH ASSY. SET, COMBINATION& LOCK(MINDA) 1
13 32100KWPG10 HARNESS, WIRE(DHOOT) 1
14 35014KWPD00 KEY & SCREW SET(JAY USHIN) 1
15 35014KWPD20 KEY & SCREW SET(MINDA) 1
16 35121KWP910 KEY, BLANK(91KEYTOP2REPORDER) 1
17 35121KWPD20 (D2KEYTOP2REPORDER)(KEY NO. RXXX/SXXX) 1
18 38110KWPG01 HORN COMP.(NIKKO) 1
19 38110KWP901 HORN COMP. 1
20 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
21 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
22 90164KEE630 SCREW, FLAT, 6X12 2
23 90657KRP901 CABLE, TIE(LONG) 1
24 92101060204J BOLT, HEX., 6X20 2
25 957010601200 BOLT, FLANGE, 6X12 1
26 957010601208 BOLT, FLANGE, 6X12 1
27 957010601600 BOLT, FLANGE, 6X16 1
28 957010601608 BOLT, FLANGE, 6X16 1
29 9820031000 FUSE, BLADE(10A) 2
30 9820031500 FUSE, BLADE(15A) 2
