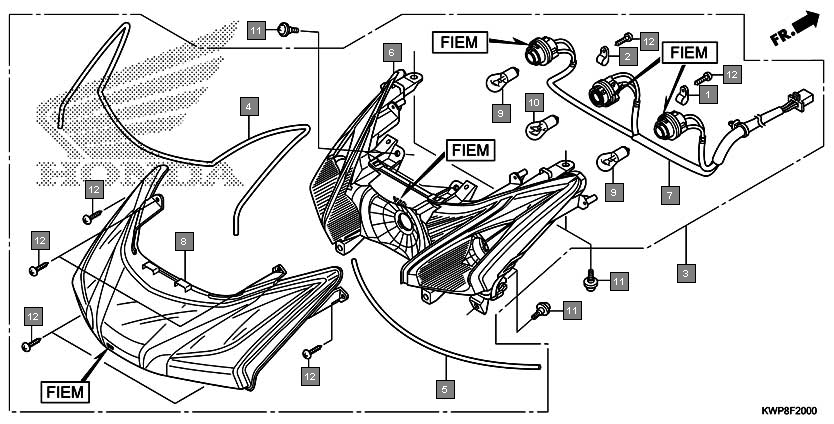

Scooters Activa SCV110G Frame Rear combination light(fiem)
Ref.No. Part No. Description Oty
1 32920KVT901 CLIP A, HARNESS 1
2 32930KVT901 CLIP B, HARNESS 1
3 33700KWPF01 LIGHT ASSY., RR. COMBINATION 1
4 33706KWPF01 PACKING A, SEAL 1
5 33707KWPF01 PACKING B, SEAL 1
6 33710KWPF01 TAILLIGHT UNIT(FIEM) 1
7 33715KWPF01 SOCKET COMP.(FIEM) 1
8 33720KWPF01 LENS COMP., TAILLIGHT(FIEM) 1
9 34904KRY971 BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) 2
10 34904KTE910 BULB, WINKER(AMBER)(12V 21W) 2
11 34904KTE920 BULB, WINKER(AMBER)(12V 21W)(PY21W) 2
12 34906KRB900 BULB, TAILLIGHT(12V 21/5W) 1
13 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
14 91509GE2760 SCREW, PAN, 5X11.5 6
15 9390124420 SCREW, TAPPING, 4X16 8
