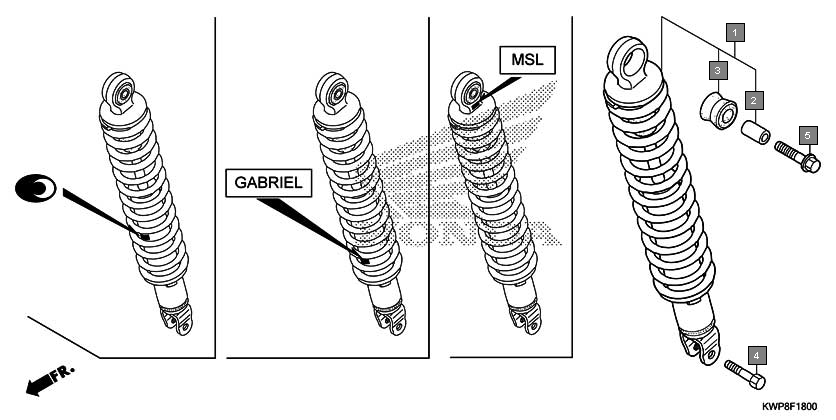

Scooters Activa SCV110G Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KWP901 CUSHION ASSY., RR.(SHOWA)(MSL) 1
2 52400KWPF02 CUSHION ASSY., RR.(GABRIEL) 1
3 52486GA7003 COLLAR, RUBBER BUSH(SHOWA)(MSL) 1
4 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 1
5 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 1
6 52485088901 BUSH, RR. CUSHION RUBBER(SHOWA) 1
7 52489KWS901 BUSH, RUBBER(GABRIEL) 1
8 52495K23902 BUSH, RUBBER(ENDURANCE) 1
9 92201080320A BOLT, HEX., 8X32 1
10 958011003500 BOLT, FLANGE, 10X35 1
