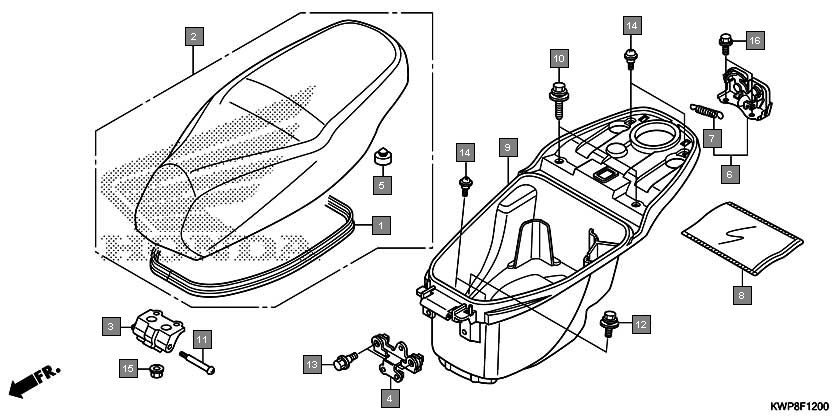

Scooters Activa SCV110G Frame Seat/luggage box
Ref.No. Part No. Description Oty
1 77115KWP900 RUBBER, SEAL 1
2 77200KWPD03ZA SEAT COMP., DOUBLE 1
3 77200KWPD12ZA SEAT COMP., DOUBLE(VARROC) 1
4 77200KWPF01ZA SEAT COMP., DOUBLE(TS TECH) 1
5 77201KWP900 HINGE, SEAT 1
6 77203KWP900 STAY, HOOK LUGGAGE 1
7 77206KG8900 RUBBER, SEAT SETTING 2
8 77235KWP900 CATCH COMP., SEAT 1
9 77236GBL000 SPRING, SEAT CATCH 1
10 77251KPL900 BAG, SERVICE BOOK 1
11 81250KWP901 BOX, LUGGAGE 1
12 90101KWP900 BOLT-WASHER, 8X40 2
13 90105KTP900 PIN, HINGE 1
14 90107KWP900 BOLT-WASHER, 8X16 1
15 90112KRP900 BOLT, FLANGE, 6X18 2
16 91509GE2760 SCREW, PAN, 5X11.5 4
17 9405006000 NUT, FLANGE, 6MM 1
18 957010601208 BOLT, FLANGE, 6X12 2
