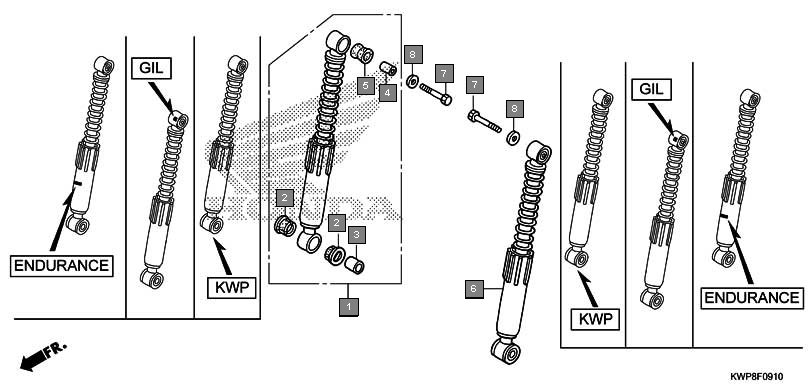

Scooters Activa SCV110G Frame Front cushion
Ref.No. Part No. Description Oty
1 51400KWP901 CUSHION ASSY., R. FR.(SHOWA)(KWP) 1
2 51400KWPG01 CUSHION ASSY., R. FR.(GABRIEL)(GIL) 1
3 51400KWPG12 CUSHION ASSY., R. FR. (ENDURANCE) 1
4 51413GC8003 BUSH, FR. CUSHION UNDER(SHOWA)(KWP) 4
5 51413KPL902 BUSH, FR. CUSHION UNDER(GABRIEL) 4
6 51413KWPD01 BUSH, FR. CUSHION UNDER(ENDURANCE) 4
7 51486GC8003 COLLAR, RUBBER BUSH(SHOWA)(KWP) 2
8 51486KPL903 COLLAR, RUBBER BUSH(GABRIEL)(GIL) 2
9 51487KWPD01 COLLAR, RUBBER BUSH(B)(ENDURANCE) 2
10 51486KRP981 COLLAR, CUSHION RUBBER BUSH(SHOWA)(KWP) 2
11 51486KWPD01 COLLAR, RUBBER BUSH(A)(ENDURANCE) 2
12 52486KPL903 COLLAR, RUBBER BUSH(GABRIEL)(GIL) 2
13 51489KWPD01 BUSH, FR. CUSHION UPPER(ENDURANCE) 2
14 52489331003 RUBBER A, JOINT(SHOWA)(KWP) 2
15 52489KPL902 BUSH, RUBBER(GABRIEL)(GIL) 2
16 51500KWP901 CUSHION ASSY., L. FR.(SHOWA) 1
17 51500KWPG01 CUSHION ASSY., L. FR.(GABRIEL)(GIL) 1
18 51500KWPG12 CUSHION ASSY., L. FR. (ENDURANCE) 1
19 90121KPL900 BOLT, HEX., 8X32 2
20 90443KPL900 WASHER, SPECIAL, 8MM 2
