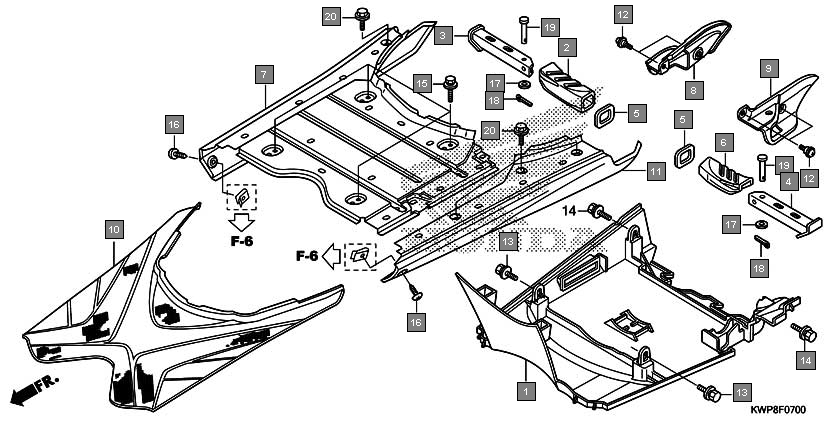

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 50621KWPF00 | COVER, UNDER | 1 |
| 2 | 50710KWPE00 | RUBBER, R. PILLION STEP | 1 |
| 3 | 50711KWP900 | BAR, R. PILLION STEP | 1 |
| 4 | 50712KWP900 | BAR, L. PILLION STEP | 1 |
| 5 | 50713KWP900 | WASHER, PILLION STEP | 2 |
| 6 | 50720KWPE00 | RUBBER, L. PILLION STEP | 1 |
| 7 | 64310KWPD00ZZ | PANEL COMP., FLOOR | 1 |
| 8 | 64312KWP900 | COVER, R. PILLION STEP | 1 |
| 9 | 64313KWP900 | COVER, L. PILLION STEP | 1 |
| 10 | 64315KWPF00 | MAT, FLOOR | 1 |
| 11 | 64330KWP900ZZ | COVER COMP., L. SIDE | 1 |
| 12 | 91509GE2760 | SCREW, PAN, 5X11.5 | 4 |
| 13 | 934040601208 | BOLT-WASHER, 6X12 | 2 |
| 14 | 90139MCA000 | BOLT, FLANGE, 6MM | 2 |
| 15 | 934040602008 | BOLT-WASHER, 6X20 | 4 |
| 16 | 9390325380 | SCREW, TAPPING, 5X16 | 2 |
| 17 | 9410106000 | WASHER, PLAIN, 6MM | 2 |
| 18 | 9420116150 | PIN, SPLIT, 1.6X15 | 2 |
| 19 | 9501581000 | PIN A, PILLION STEP | 2 |
| 20 | 957010601208 | BOLT, FLANGE, 6X12 | 4 |
