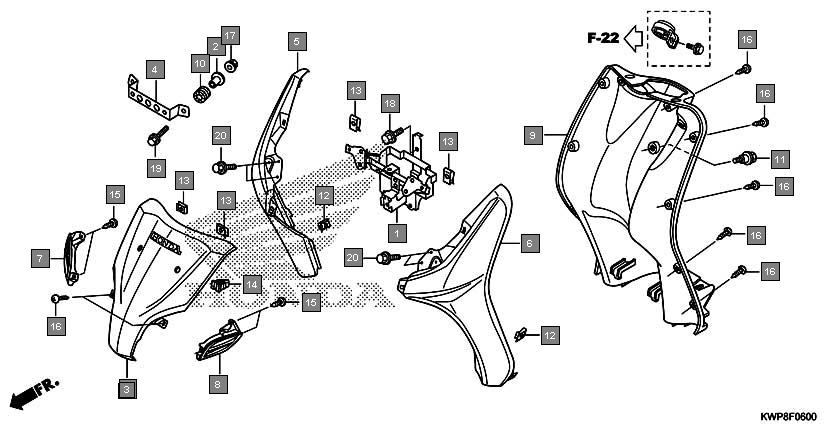

Scooters Activa SCV110G Frame Front cover
Ref.No. Part No. Description Oty
1 50330KWPF00 TRAY COMP., BATTERY 1
2 61104428000 COLLAR, FR. FENDER 2
3 64200KWPG00ZA SET ILLUST,FR COVER*TYPE6* 1
4 64200KWPG00ZE SET ILLUST,FR COVER*TYPE2* 1
5 64200KWPG00ZD SET ILLUST,FR COVER*TYPE3* 1
6 64200KWPG00ZG SET ILLUST,FR COVER*TYPE4* 1
7 64200KWPG00ZF SET ILLUST,FR COVER*TYPE1* 1
8 64200KWPG00ZH COVER SET, FR.(WL) *TYPE5 1* 1
9 64303KWPF00 STAY, FR. NUMBER PLATE 1
10 64304KWPF00ZZ COVER COMP., R. FR. 1
11 64305KWPF00ZZ COVER COMP., L. FR. 1
12 64307KWPF00 LOUVER, R. FR. COVER 1
13 64308KWPF00 LOUVER, L. FR. COVER 1
14 81131KWP900ZA COVER, INNER *NH1* BLACK 1
15 84703425000 RUBBER, TAILLIGHT MOUNTING 2
16 90111KWP900 BOLT, INNER COVER 1
17 90344KRB900 NUT, CLIP, 5MM 10
18 90344KRP900 NUT, CLIP, 5MM 4
19 90601SJA003 CLIP, SNAP FITTING 4
20 9390325280 SCREW, TAPPING, 5X12 4
21 9390325380 SCREW, TAPPING, 5X16 12
22 9405006080 NUT, FLANGE, 6MM 2
23 957010601208 BOLT, FLANGE, 6X12 3
24 957020601208 BOLT, FLANGE, 6X12 3
25 957010602507 BOLT, FLANGE, 6X25 2
26 957020602507 BOLT, FLANGE, 6X25 2
27 958010601008 BOLT, FLANGE, 6X10 4
