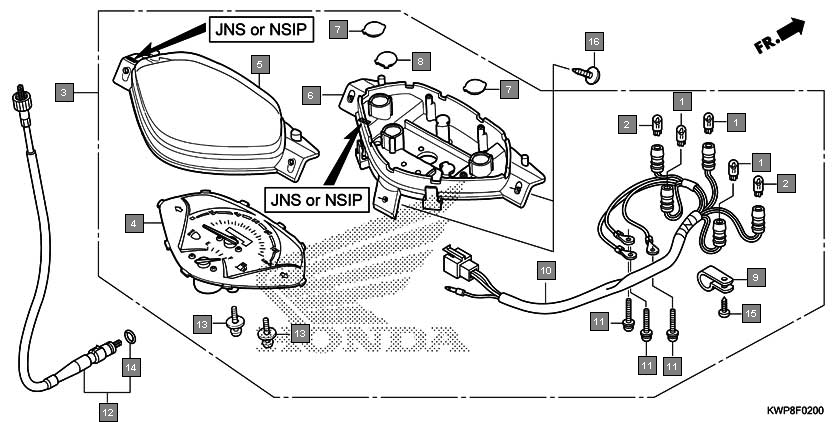

Scooters Activa SCV110G Frame Meter(nippon seiki)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 3
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 2
3 37200KWPF01 SPEEDOMETER ASSY. 1
4 37210KWPF01 METER COMP., SPEED & FUEL 1
5 37211KRP901 LENS 1
6 37212KWP901 CASE 1
7 37213KRP901 LENS, PILOT TURN 2
8 37214KPL901 LENS, PILOT HIGH BEAM 1
9 37215MB6831 CLAMP 1
10 37224KWP901 SOCKET COMP. 1
11 37305KE5008 SCREW-WASHER, 3X22 3
12 44830KWP901 CABLE COMP., SPEEDOMETER 1
13 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
14 91352671003 O-RING, 8.5X1.5(ARAI) 1
15 9390324420 SCREW, TAPPING, 4X16 1
16 9390325380 SCREW, TAPPING, 5X16 3
