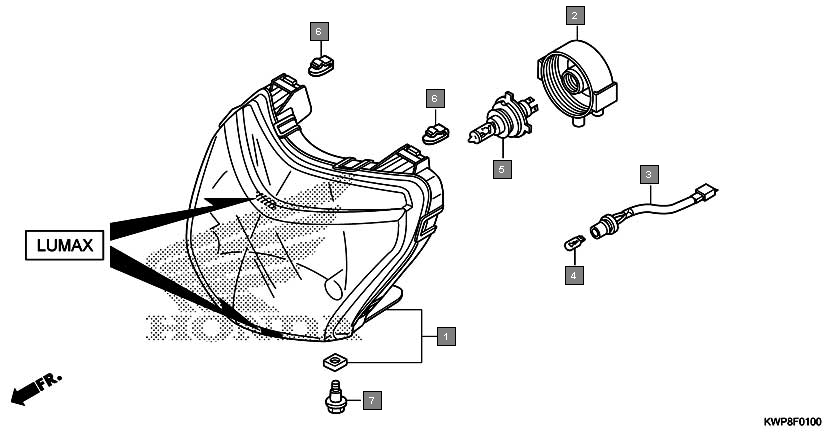

Scooters Activa SCV110G Frame Headlight(lumax)
Ref.No. Part No. Description Oty
1 33110KWPF01 HEADLIGHT UNIT(LUMAX) 1
2 33126KWPF01 COVER, RUBBER(LUMAX) 1
3 33150KWPF01 SOCKET ASSY., POSITION LIGHT 1
4 33301KVE900 BULB, WEDGE BASE(T10 12V 5W) 1
5 34901KTE740 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) 1
6 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
7 53209GAH000 CLIP, HEADLIGHT 2
8 90101GJ6000 BOLT, ADJUSTING 1
