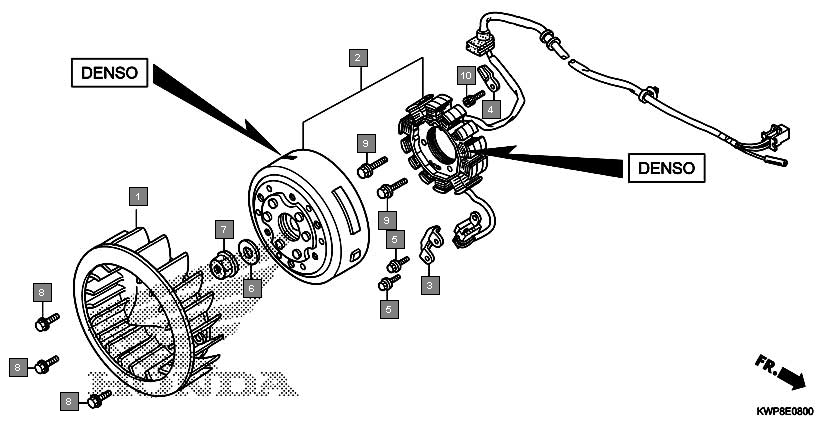

Scooters Activa SCV110G Engine Generator(denso)
Ref.No. Part No. Description Oty
1 19510KWPD00 FAN COMP., COOLING 1
2 32907GGC900 CLIP, A.C. GENERATOR CORD 1
3 32976107010 CLAMPER, WIRE HARNESS 1
4 90002KGH900 BOLT, FLANGE, 5X14 2
5 90410GCC000 WASHER, 10MM 1
6 9405010000 NUT, FLANGE, 10MM 1
7 957010601600 BOLT, FLANGE, 6X16 3
8 957020601600 BOLT, FLANGE, 6X16 3
9 960010602200 BOLT, FLANGE, 6X22 2
10 966000601600 BOLT, SOCKET, 6X16 1
11 31100KWPG01 GENERATOR ASSY., A.C.(DENSO) 1
