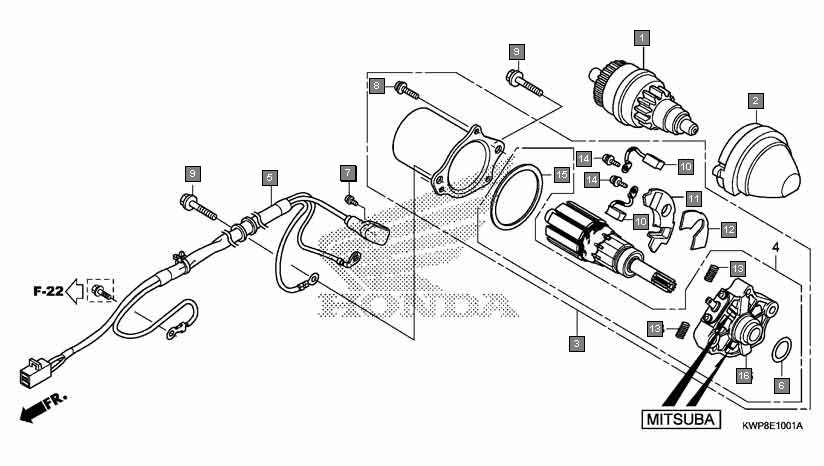

Scooters Activa SCV110G Engine Starting motor(mitsuba)
Ref.No. Part No. Description Oty
1 28120KVB901 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31210KWPG12 MOTOR UNIT, STARTER(MITSUBA) 1
4 31207K55601 SCREW-WASHER, 5X12 3
5 32105KWPE02 HARNESS COMP., STARTING MOTOR 1
6 91309KEE630 O-RING 1
7 938920400608 SCREW-WASHER, 4X6 1
8 938920400808 SCREW-WASHER, 4X8 1
9 960010603500 BOLT, FLANGE, 6X35 2
10 31201K55601 BRUSH, CARBON 2
11 31202K55601 BRUSH HOLDER 1
12 31203K55601 INSULATOR 1
13 31204K55601 SPRING, BRUSH 2
14 31205K55601 SCREW, 4X6 2
15 31206K55601 PACKING(MITSUBA) 1
16 31214KWPG12 BRACKET COMP., FR. 1
