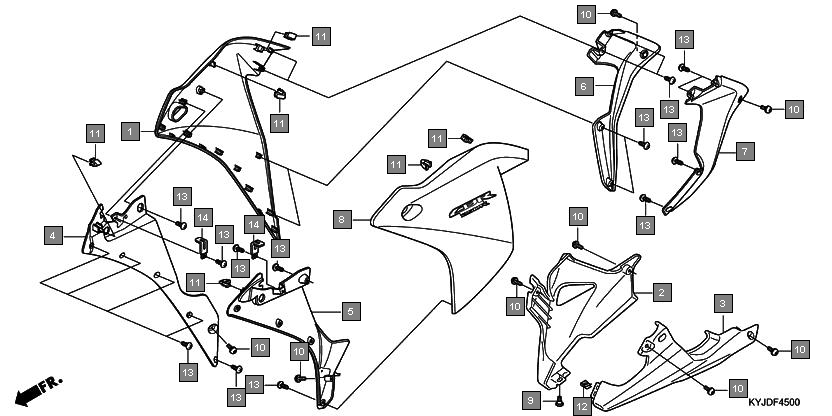

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 64300KYJH80ZD | COWL SET, R. MIDDLE(WL)*TYPE3 1* | 1 |
2 | 64300KYJH80ZE | COWL SET, R. MIDDLE(WL)*TYPE2 1* | 1 |
3 | 64300KYJH80ZF | COWL SET, R. MIDDLE(WL) *TYPE1 1* | 1 |
4 | 64310KYJ900 | COWL, R. UNDER | 1 |
5 | 64320KYJ900 | COWL, L. UNDER | 1 |
6 | 64350KPPN00 | COWL, R. INNER MIDDLE | 1 |
7 | 64360KPPT00 | COWL, L. INNER MIDDLE | 1 |
8 | 64340KYJT10ZA | PANEL SET, R. MIDDLE(WL) *TYPE1* | 1 |
9 | 64370KYJ900ZG | PANEL, R. MIDDLE *NH1* BLACK | 1 |
10 | 64370KYJ900ZK | PANEL, R. MIDDLE *R321* SPORTS RED | 1 |
11 | 64370KPPT00 | PANEL, R. MIDDLE | 1 |
12 | 64380KYJ900ZG | PANEL, L. MIDDLE *NH1* BLACK | 1 |
13 | 64380KYJ900ZK | PANEL, L. MIDDLE *R321* SPORTS RED | 1 |
14 | 64380KPPT00 | PANEL, L. MIDDLE | 1 |
15 | 64400KYJH80ZD | COWL SET, L. MIDDLE(WL) *TYPE3 1* | 1 |
16 | 64400KYJH80ZE | COWL SET, L. MIDDLE(WL) *TYPE2 1* | 1 |
17 | 90115KPP860 | SCREW, VISOR SPECIAL SETTING | 1 |
18 | 90132KPPT00 | SCREW, PAN, 6X10 | 8 |
19 | 90666SDAA01 | CLIP, SNAP FITTING(PO)(NATURAL) | 6 |
20 | 90677KANT00 | NUT, CLIP, 5MM | 1 |
21 | 9390324380 | SCREW, TAPPING, 4X12 | 22 |
22 | 9459145000 | CLIP, WIRE, 4X50 | 2 |
