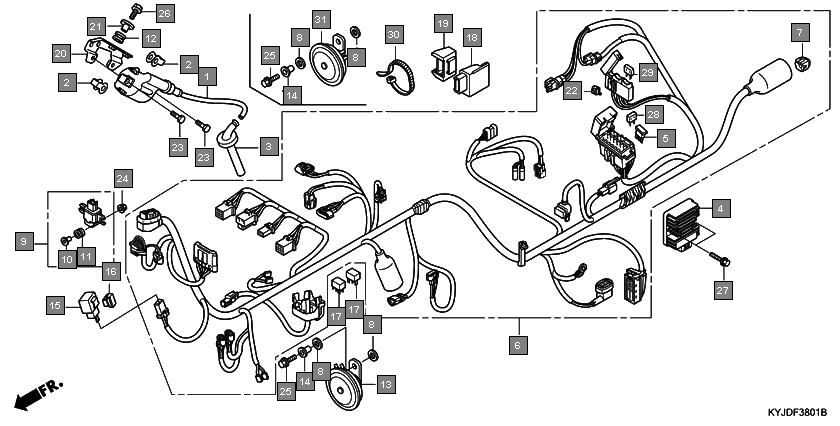

Motorcycles CBR250R CBR250RAG Frame Wire harness(cbr250ra)
Ref.No. Part No. Description Oty
1 30510KYJ901 COIL COMP., IGNITION 1
2 30520GFM900 SPACER, IGNITION COIL 2
3 30700KY2702 CAP ASSY., NOISE SUPPRESSOR 1
4 31600KVK901 RECTIFIER ASSY., REGULATOR 1
5 32100KYJH80 HARNESS, WIRE 1
6 31730MAS601 DIODE ASSY., THREE WAY (SUMITOMO) 1
7 32606GEV761 CAP, DUMMY(4P)(RED) 1
8 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
9 35160KPPT01 SENSOR ASSY., BANK ANGLE 1
10 35162MGC003 COLLAR 2
11 35163MGC003 GROMMET 2
12 36043657000 GROMMET, WIRE HARNESS 2
13 38110KYJT01 HORN COMP.(HIGH) 1
14 38117KYJT00 COLLAR, HORN SETTING 2
15 38301KTF671 RELAY COMP., WINKER 1
16 38306GE7000 SUSPENSION, WINKER RELAY 1
17 38501KWN901 RELAY COMP., POWER (MICRO ISO 4P)(OMRON) 2
18 38770KYJT01 PGM-FI UNIT 1
19 38771GFM900 SUSPENSION, ENGINE CONTROL UNIT 1
20 50204KYJ900 STAY COMP., IGNITION COIL 1
21 50214KYJ900 COLLAR, IGNITION COIL MOUNTING 2
22 91556SP0003 CLIP, COUPLER(BROWN) 1
23 92101060204J BOLT, HEX., 6X20 2
24 9405006080 NUT, FLANGE, 6MM 2
25 957010601600 BOLT, FLANGE, 6X16 2
26 957010601608 BOLT, FLANGE, 6X16 2
27 957010602000 BOLT, FLANGE, 6X20 2
28 9820041000 FUSE, MINI(10A) 8
29 9820043000 FUSE, MINI(30A) 3
30 90651KYJ611 BAND, WIRE 1
31 38120KYJT01 HORN COMP.(LOW) 1
