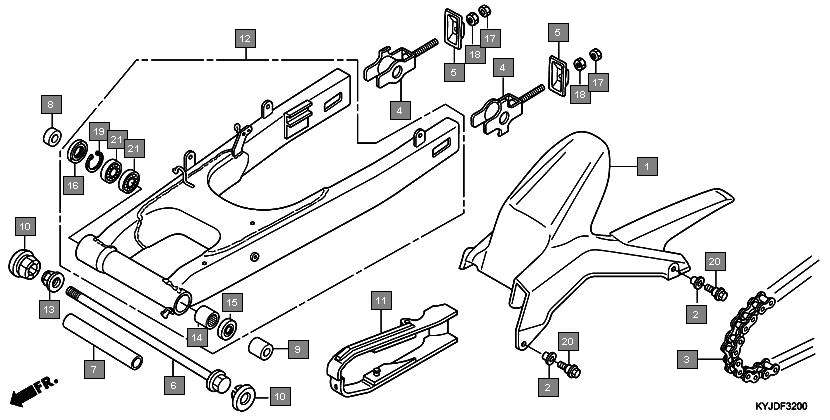

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40510KYJ900 | CASE, DRIVE CHAIN | 1 |
| 2 | 40511KYJ900 | COLLAR | 4 |
| 3 | 40530KYJ711 | CHAIN, DRIVE(LGB) (R520BSOR-108LE) (ENDLESS TYPE) | 1 |
| 4 | 40543KYJ900 | ADJUSTER COMP., CHAIN | 2 |
| 5 | 40546KYJ900 | CAP, SWINGARM END | 2 |
| 6 | 40546KYJS90 | CAP, SWINGARM END | 2 |
| 7 | 52101KYJ900 | BOLT, SWINGARM PIVOT | 1 |
| 8 | 52102ML4000 | COLLAR, PIVOT DISTANCE | 1 |
| 9 | 52105MJ0000 | COLLAR B, RR. FORK PIVOT | 1 |
| 10 | 52106KYJ900 | COLLAR, PIVOT | 1 |
| 11 | 52161KYJ900 | CAP, RR. FORK PIVOT | 2 |
| 12 | 52170KYJ900 | SLIDER, CHAIN | 1 |
| 13 | 52200KYJ900 | SWINGARM SUB ASSY., RR. | 1 |
| 14 | 52200KYJS90 | SWINGARM SUB ASSY., RR. | 1 |
| 15 | 90305KVN901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 |
| 16 | 91071MJ0003 | BEARING, NEEDLE, 22X29X30(NTN) | 1 |
| 17 | 91072KYJ711 | BEARING, NEEDLE, 22X29X30(NRB) | 1 |
| 18 | 91205965003 | OIL SEAL, 22X31X5(ARAI) | 1 |
| 19 | 91213MB2003 | DUST SEAL, 22X35X7(ARAI) | 1 |
| 20 | 91213MB2006 | DUST SEAL, 22X35X7(NOK) | 1 |
| 21 | 94002080000S | NUT, HEX., 8MM | 2 |
| 22 | 9403108000 | NUT, HEX., 8MM | 2 |
| 23 | 9452035000 | CIRCLIP, INTERNAL, 35MM | 1 |
| 24 | 957010601207 | BOLT, FLANGE, 6X12 | 4 |
| 25 | 961006202010 | BEARING, RADIAL BALL, 6202 | 2 |
