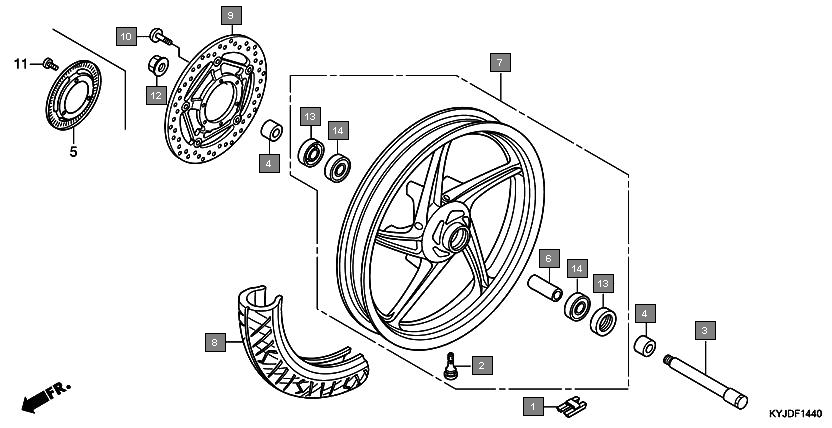

Motorcycles CBR250R CBR250RAG Frame Front wheel
Ref.No. Part No. Description Oty
1 42704MERD00 WEIGHT, BALANCE(10G) 1
2 42705MERD00 WEIGHT, BALANCE(20G) 1
3 42706MERD00 WEIGHT, BALANCE(30G) 1
4 42753KWF901 VALVE, RIM(TRITON) 1
5 44301KYJ900 AXLE, FR. WHEEL 1
6 44311KYJ900 COLLAR, FR. WHEEL 2
7 44515MEJD01 RING, FR. PULSER 1
8 44620KYJ900 COLLAR, FR. AXLE DISTANCE 1
9 44650KYJ610ZC WHEEL SUB ASSY., FR.*NH303M* MAT AXIS GRAY METALLIC 1
10 44650KYJ610ZB WHEEL SUB ASSY., FR. *YR250* VIBRANT ORANGE 1
11 44711KYJ712 TIRE, FR.(CONTINENTAL) (110/70-17M/C 54S) 1
12 44711KYJ713 TIRE, FR.(CONTINENTAL) (110/70-17M/C 54S) 1
13 44711KYJT01 TIRE, FR.(MRF) (110/70-17M/C 54S) 1
14 45120KYJ711 DISK COMP., R. FR. BRAKE 1
15 90106KGH600 BOLT, BRAKE DISK, 6X17 6
16 90131KYJ610 BOLT, TORX, 5X10 3
17 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
18 91252MC7003 DUST SEAL, 22X42X7(ARAI) 2
19 961506302010 BEARING, RADIAL BALL, 6302UU 2
