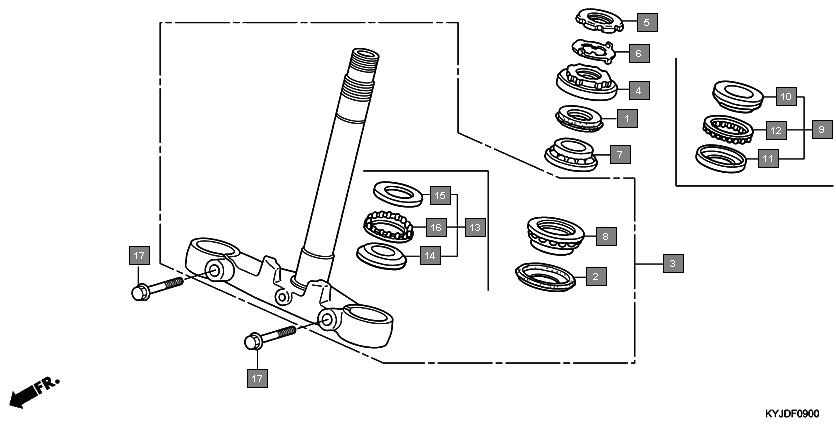

Motorcycles CBR250R CBR250RAG Frame Steering stem
Ref.No. Part No. Description Oty
1 53213MB4771 DUST SEAL, STEERING UPPER (ARAI) 1
2 53214371010 DUST SEAL, STEERING HEAD 1
3 53219KYJ710 STEM SUB ASSY., STEERING 1
4 53220KYJ900 THREAD COMP., STEERING HEAD TOP 1
5 90302425830 THREAD B, STEERING HEAD TOP 1
6 90506425830 WASHER, LOCK 1
7 91015KT8005 BEARING, HEAD PIPE UPPER(KOYO) 1
8 91016KT8005 BEARING, HEAD PIPE UNDER(KOYO) 1
9 91051KYJ711 BEARING, HEAD PIPE UPPER(SKF) 1
10 91052KYJ711 RACE, STEERING CONE 1
11 91053KYJ711 RACE, STEERING BALL 1
12 91056KYJ711 BALL ASSY., STEERING STEEL 1
13 91061KYJ711 BEARING, HEAD PIPE UNDER(SKF) 1
14 91062KYJ711 RACE, STEERING CONE 1
15 91063KYJ711 RACE, STEERING BALL 1
16 91066KYJ711 BALL ASSY., STEERING STEEL 1
17 957011003507 BOLT, FLANGE, 10X35 2
