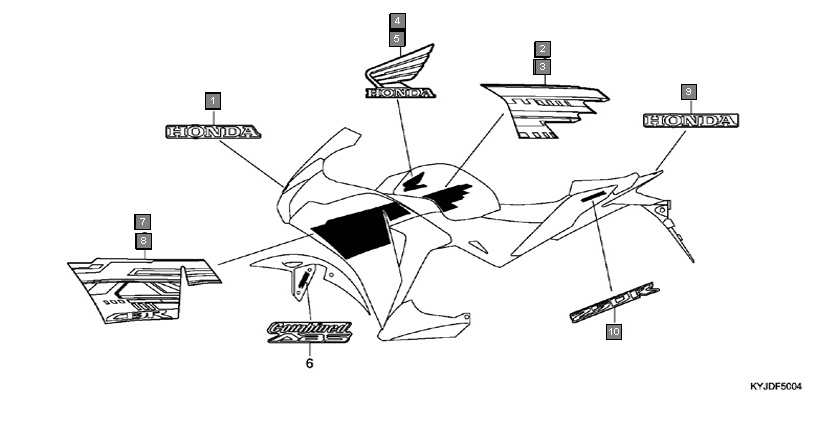

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86101KYJH80ZA | MARK, HONDA(80MM) *TYPE3* | 1 |
2 | 86101KYJH80ZB | MARK, HONDA(80MM) *TYPE2* | 1 |
3 | 86101KYJH80ZC | MARK, HONDA(80MM) *TYPE1* | 1 |
4 | 86171KYJH80ZA | STRIPE, R. FUEL TANK*TYPE3*. | 1 |
5 | 86171KYJH80ZB | STRIPE, R. FUEL TANK*TYPE2* | 1 |
6 | 86171KYJH80ZC | STRIPE, R. FUEL TANK*TYPE1* | 1 |
7 | 86641KYJH80ZD | STRIPE A, R. MIDDLE COWL *TYPE3 1* | 1 |
8 | 86641KYJH80ZE | STRIPE A, R. MIDDLE COWL *TYPE2 1* | 1 |
9 | 86642KYJH80ZD | STRIPE A, L. MIDDLE COWL *TYPE3 1* | 1 |
10 | 86641KYJH80ZF | STRIPE A, R. MIDDLE COWL *TYPE1 1* | 1 |
11 | 86642KYJH80ZE | STRIPE A, L. MIDDLE COWL *TYPE2 1* | 1 |
12 | 86642KYJH80ZF | STRIPE A, L. MIDDLE COWL *TYPE1 1* | 1 |
13 | 86172KYJH80ZA | STRIPE, L. FUEL TANK*TYPE3* | 1 |
14 | 86172KYJH80ZB | STRIPE, L. FUEL TANK*TYPE2* | 1 |
15 | 86172KYJH80ZC | STRIPE, L. FUEL TANK*TYPE1* | 1 |
16 | 86201KYJH80ZA | MARK, R. WING(90MM) *TYPE2* | 1 |
17 | 86201KYJH80ZB | MARK, R. WING(90MM) *TYPE1* | 1 |
18 | 86201KYJH80ZE | MARK, R. WING(90MM) *TYPE3* | 1 |
19 | 86202KYJH80ZA | MARK, L. WING(90MM) *TYPE2* | 1 |
20 | 86202KYJH80ZB | MARK, L. WING(90MM) *TYPE1* | 1 |
21 | 86202KYJH80ZE | MARK, L. WING(90MM) *TYPE3* | 1 |
22 | 86611KYJ910ZA | MARK, ABS *TYPE1* | 2 |
23 | 86611KYJE20ZB | MARK, ABS *TYPE3* | 1 |
24 | 86611KYJE20ZC | MARK, ABS *TYPE2* | 2 |
25 | 86831KPPT00ZA | MARK, HONDA *TYPE1* | 1 |
26 | 86832KYJH80ZA | MARK(250R)*TYPE3* | 1 |
