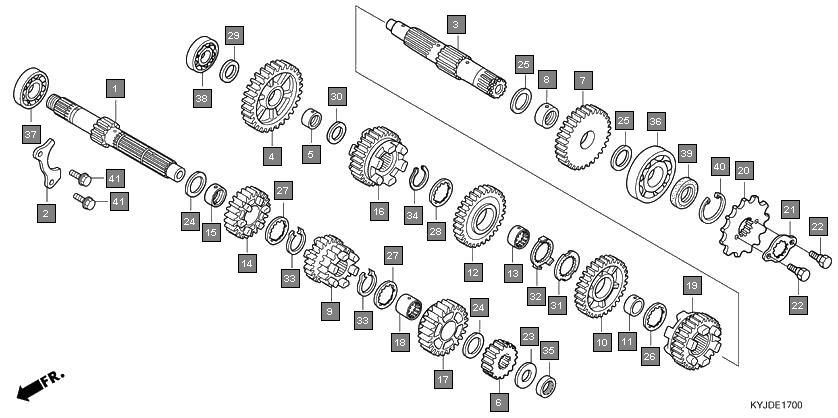

Motorcycles CBR250R CBR250RAG Engine Transmission
Ref.No. Part No. Description Oty
1 23211KYJ900 MAINSHAFT(12T) 1
2 23212KYJ900 PLATE, BEARING SETTING 1
3 23221KYJ900 COUNTERSHAFT 1
4 23411KYJ900 GEAR, COUNTERSHAFT FIRST(40T) 1
5 23412KYJ900 COLLAR, 20X23X10.5 1
6 23421KYJ900 GEAR, MAINSHAFT SECOND(17T) 1
7 23431KYJ900 GEAR, COUNTERSHAFT SECOND(36T) 1
8 23432KYJ900 COLLAR, 22X25X11 1
9 23441KYJ900 GEAR, MAINSHAFT THIRD & FOURTH (21T/23T) 1
10 23451KYJ900 GEAR, COUNTERSHAFT THIRD(33T) 1
11 23452KYJ900 COLLAR, 25X28X10 1
12 23471KYJ900 GEAR, COUNTERSHAFT FOURTH(30T) 1
13 23472KYJ900 COLLAR, SPLINE, 25X10 1
14 23481KYJ900 GEAR, MAINSHAFT FIFTH(26T) 1
15 23482KYJ900 BUSH, 20X23X17.4 1
16 23491KYJ900 GEAR, COUNTERSHAFT FIFTH(29T) 1
17 23501KYJ901 GEAR, MAINSHAFT SIXTH(27T) 1
18 23502KYJ900 COLLAR, SPLINE, 23MM 1
19 23511KYJ901 GEAR, COUNTERSHAFT SIXTH(26T) 1
20 23801KYJ900 SPROCKET, DRIVE(14T) 1
21 23802KYJ900 PLATE, FIXING 1
22 90084041000 BOLT, DRIVE SPROCKET FIXING 2
23 90405KYJ900 WASHER, 17X26X1.0 1
24 90406KYJ900 WASHER, 20X27X1.0 2
25 90407KYJ900 WASHER, 22X29X1.0 2
26 90408KYJ900 WASHER, 25X32X1.0 1
27 90451KYJ900 WASHER, SPLINE, 20X26X1.6 2
28 90452KYJ900 WASHER, SPLINE, 25X31X1.0 1
29 90453KYJ900 WASHER, 17X28X1.0 1
30 90454KPS900 WASHER B, THRUST, 20MM 1
31 90454KYJ900 WASHER, SPLINE, 25X42X1.6 1
32 90455KYJ900 WASHER, LOCK, 25MM 1
33 90601KYJ900 CIRCLIP, EXTERNAL, 20MM 2
34 90602KYJ900 CIRCLIP, EXTERNAL, 25MM 1
35 91003KYJ710 BEARING, NEEDLE, 17X27X13 1
36 91003KYJ711 BEARING, NEEDLE, 17X27X13 1
37 91005KYJ711 BEARING, RADIAL BALL(63/22) 1
38 91013KYJ711 BEARING, RADIAL BALL, 6304 1
39 91014KYJ711 BEARING, RADIAL BALL, 6203U 1
40 91207KYJ711 OIL SEAL, 22X36X5 1
41 9452037000 CIRCLIP, INTERNAL, 37MM 1
42 957010601400 BOLT, FLANGE, 6X14 2
